Disassembly And Assembly: Notes

CAUTION: Do not use ATF-SP II M and ATF-SP III for the power steering fluid.

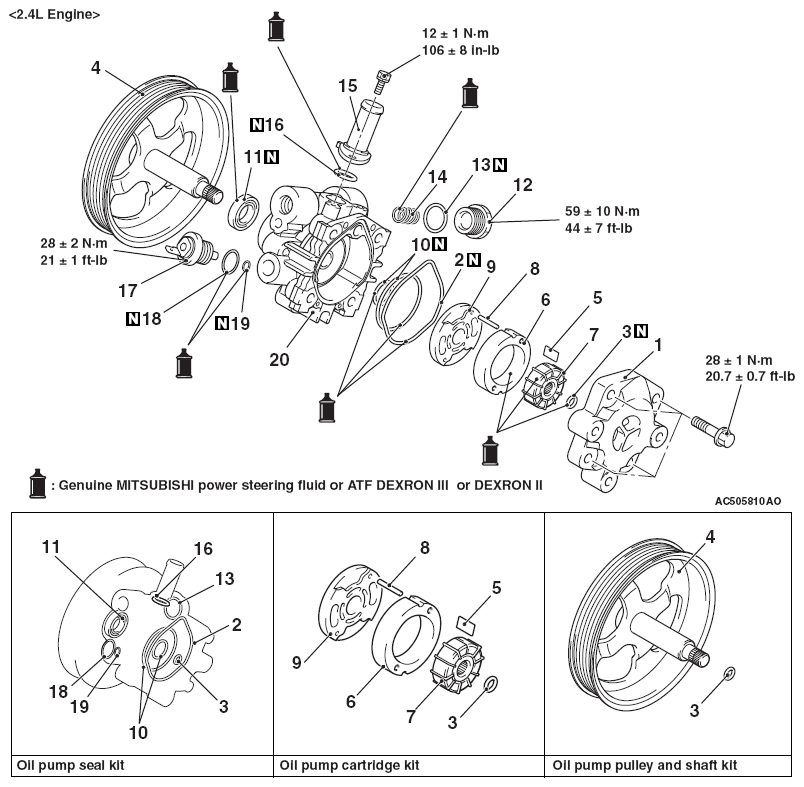

Fig 1: Power Steering Oil Pump Assembly Disassembly And Assembly With Torque Specifications - 2.4L Engine
G07044395Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

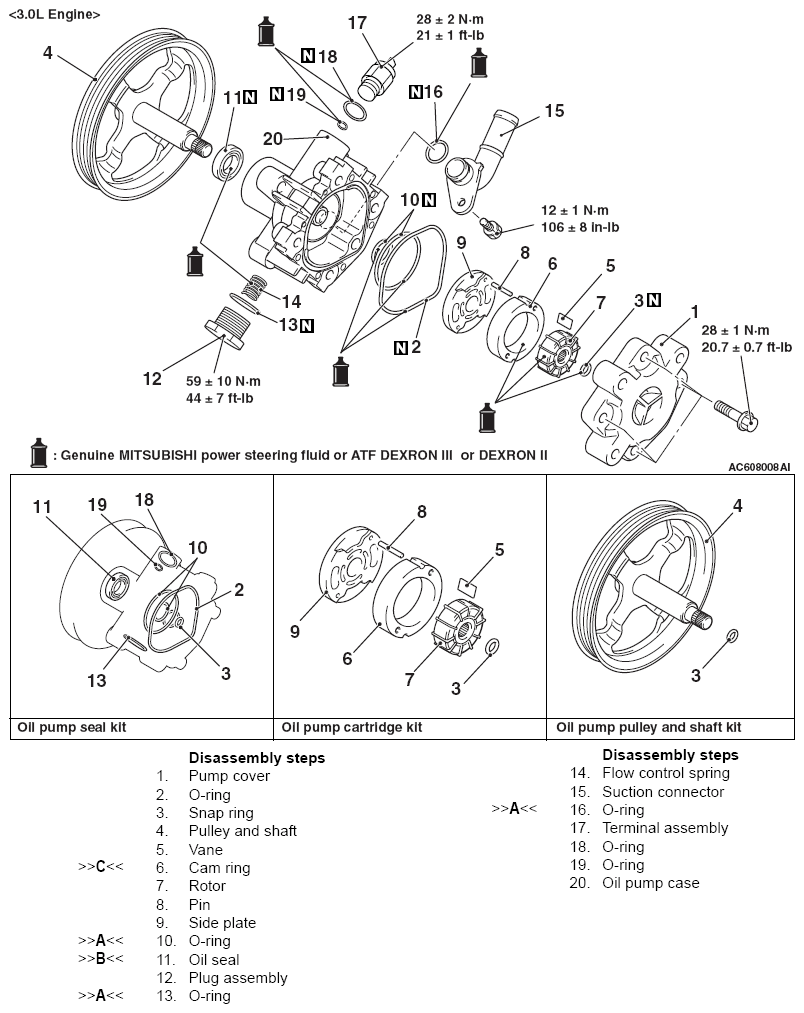

Fig 2: Power Steering Oil Pump Assembly Disassembly And Assembly With Torque Specifications - 3.0L Engine
G07044396Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
