<< B >> Battery Removal

WARNING: This page is about a different car, the 2012 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.
To prevent damage to the transmitter assembly, wrap a flat-tipped screwdriver with protective tape before prying.

Insert a flat-tipped screwdriver in the area shown in the illustration, and remove the battery by prying it with the screwdriver.

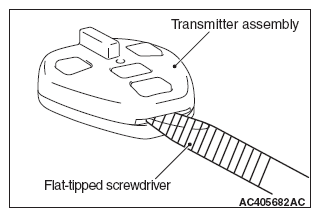

Fig 1: Prying Transmitter Assembly With Screwdriver

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
