>> B << Band Installation

CAUTION:
  • Hold the rack housing, and use special tool bellows band crimping tool (MB992209) to crimp the bellows band securely.
  • Crimp the bellows band until special tool (MB992209) touches the stopper.
  1. Use special tool boot band crimping tool (MB992209) to crimp the bellows band.

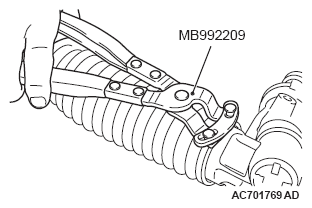

    Fig 1: Crimping Bellows Band Using Special Tool Boot Band Crimping Tool (MB992209)
    G07032718Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check that crimped width (A) is within the standard value.

    Standard value (A): 2.4 - 2.8 mm

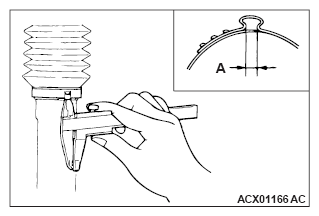

    Fig 2: Checking Crimped Width (A) Is Within Standard Value
    G07032719Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
