<< A >> Steering Lock Bolt Removal

  1. Use a drill to make a hole just deeply enough for the tap to stand on the steering lock bolt.
  2. Use a left-hand thread tap to remove the steering lock bolt.

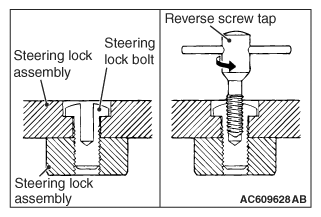

    Fig 1: Removing Steering Lock Bolt Using Left-Hand Thread Tap
    G06700008Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
