<< A >> TPMS Transmitter Removal

CAUTION: Be careful not to damage the TPMS transmitter.

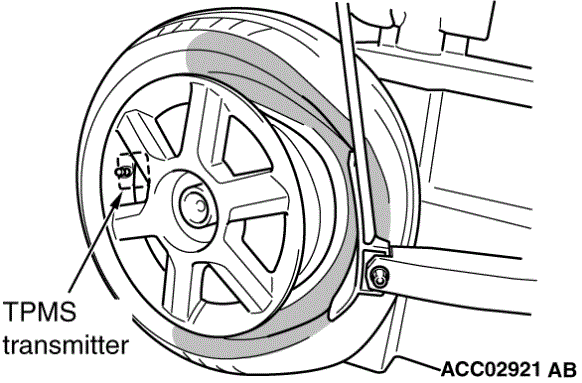

Fix the tire on a tire changing machine. Then apply a bead breaking shoe to the shown range to disengage the tire bead from the wheel rim.
NOTE: For the opposite side, repeat the same procedure.

Fig 1: Fixing Tire On Tire Machine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Range
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

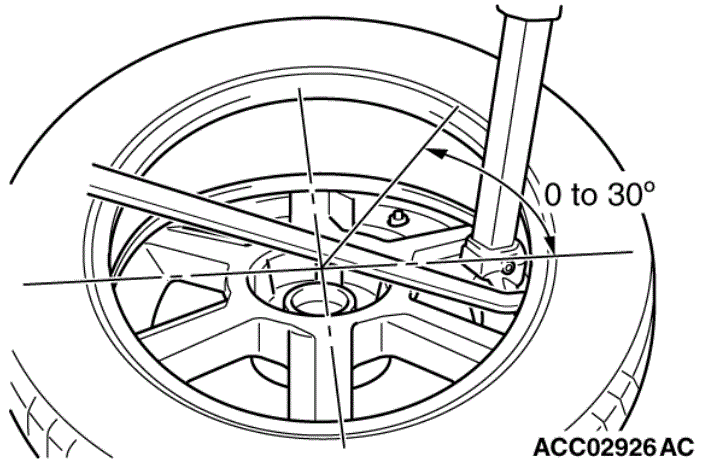

Fix the tire on a tire changing machine so that the TPMS transmitter is positioned as shown in the illustration.

CAUTION: Do not allow any impact or shock to the TPMS transmitter with a tire lever or tire bead.

Use a tire lever to disengage the upper bead.
Rotate the tire in the direction of arrow to disengage the tire bead from the wheel.

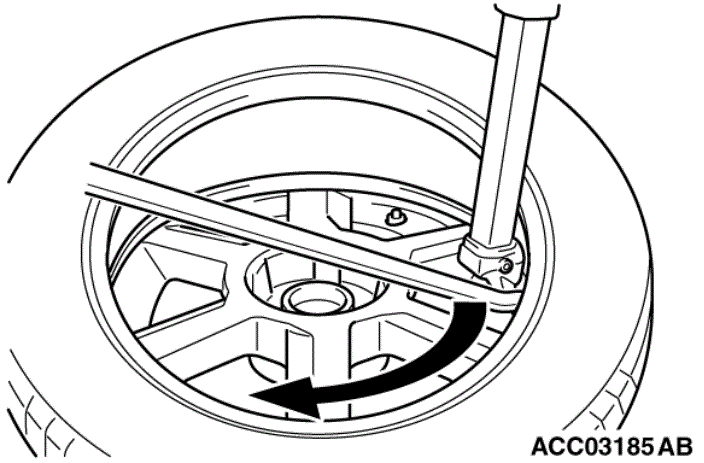

Fig 3: Rotating Tire
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Disengaging Tire Bead
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

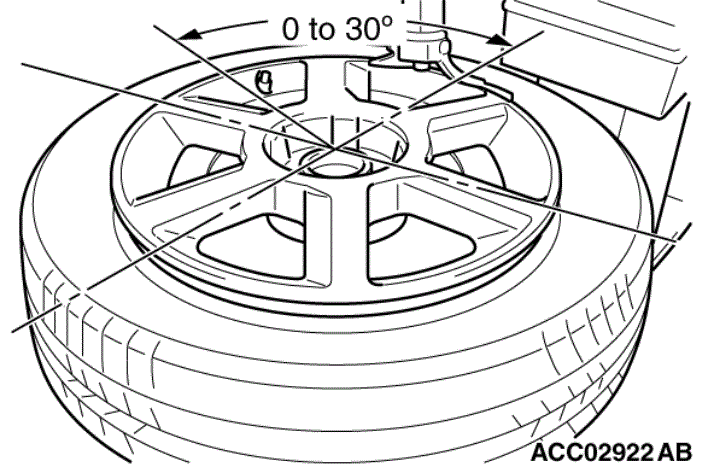

Fix the tire on a tire changing machine so that the TPMS transmitter is positioned as shown in the illustration.

CAUTION: Do not allow any impact or shock to the TPMS transmitter with a tire lever or tire bead.

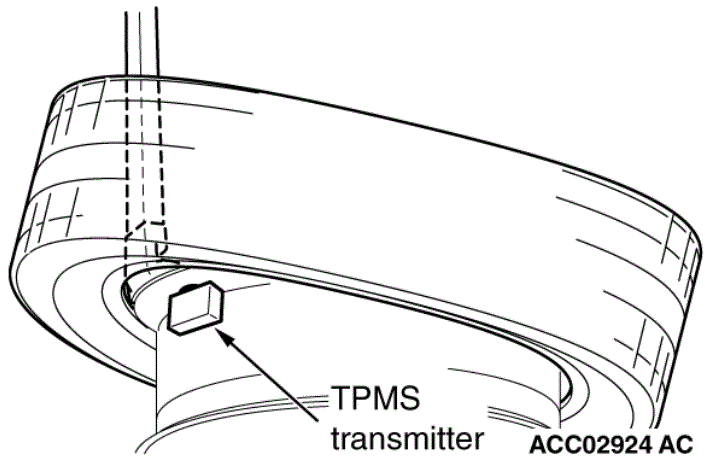

Fig 5: Locating TPMS Transmitter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Use a tire lever to disengage the lower bead.
Rotate the tire in the direction of arrow to disengage the tire bead from the wheel.

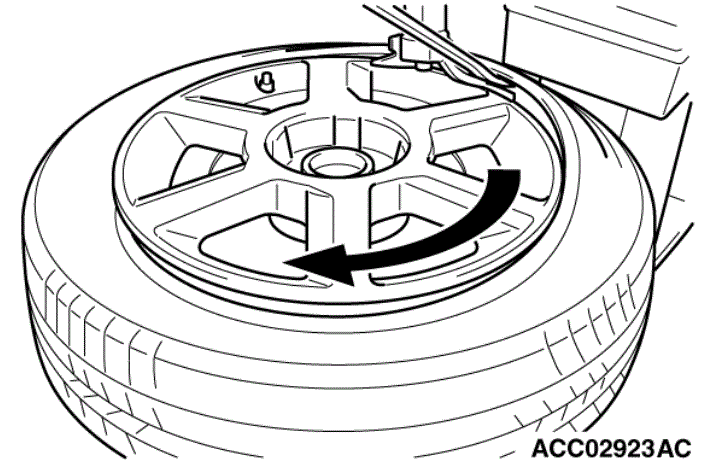

Fig 6: Rotating Tire
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Do not attempt to remove the TPMS transmitter without depressing the portion indicated by the arrow.

Fig 7: Identifying Arrow

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Remove the TPMS transmitter from the valve while depressing the portion indicated by the arrow in the illustration.

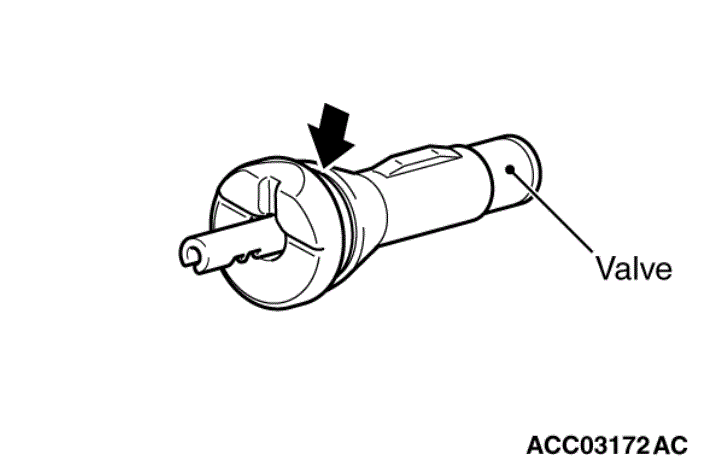

Cut down the entire groove shown by the arrow in the illustration to remove the valve.

Fig 8: Identifying Groove
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
