DTC B1402: Driver's Air Bag Module (1ST Squib) System (Shorted To Squib Circuit Ground); DTC B1482: Driver's Air Bag Module (2ND Squib) System (Shorted To Squib Circuit Ground): Notes

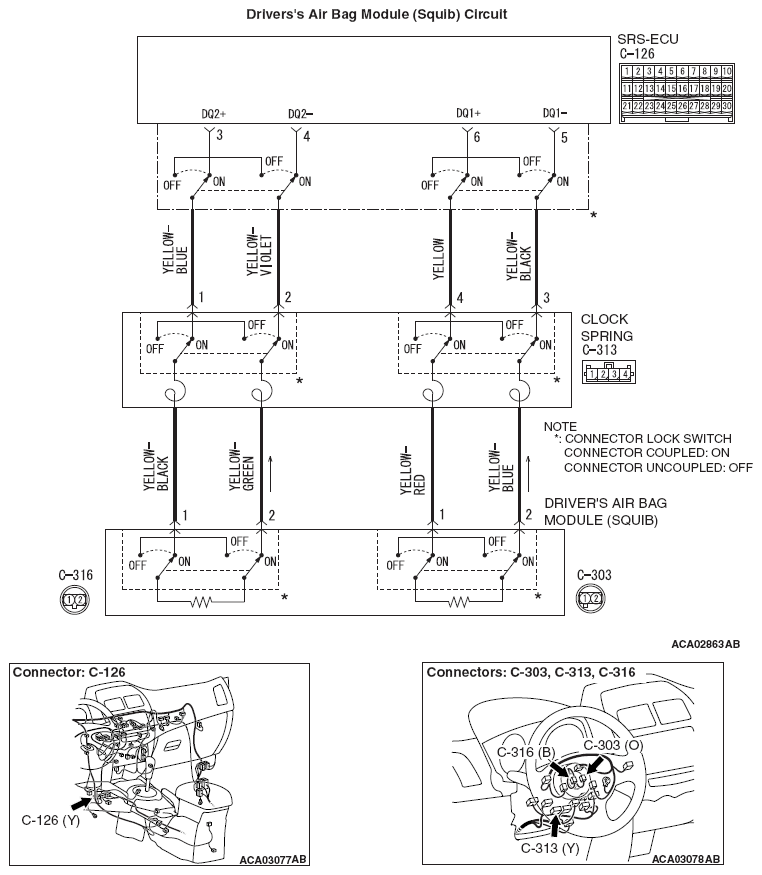

Fig 1: Drivers's Air Bag Module (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If DTC B1402 < 1st squib > or B1482 < 2nd squib > is set in the SRS-ECU, always diagnose the CAN main bus line.
• When DTC B1402 is set in the following diagnosis, check the 1st squib circuit. When DTC B1482 is set, check the 2nd squib circuit.
