Removal And Installation: Notes

CAUTION:
  • Do not reuse the product that has been dropped because its internal components may be defective even if it has no apparent damage.
  • Always keep EPS-ECU away from the matter that generates magnetic force.

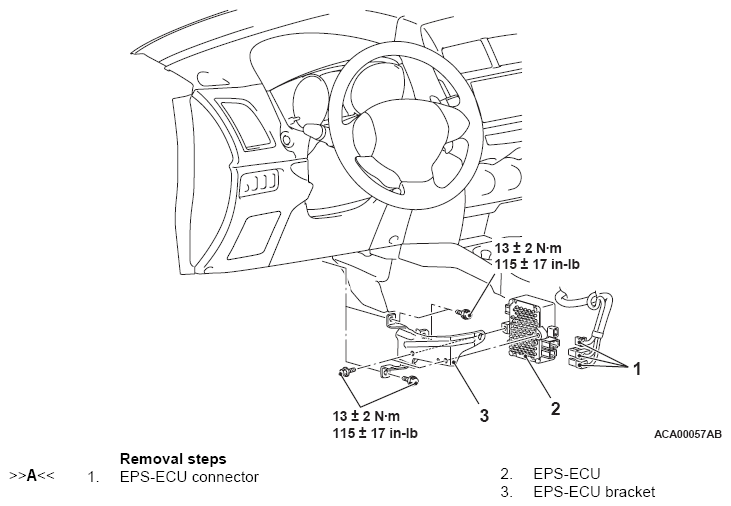

    Fig 1: Electric Power Steering Control Unit Replacement Components With Torque Specifications
    G07048566Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
