Removal And Installation: Notes

CAUTION: After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION .

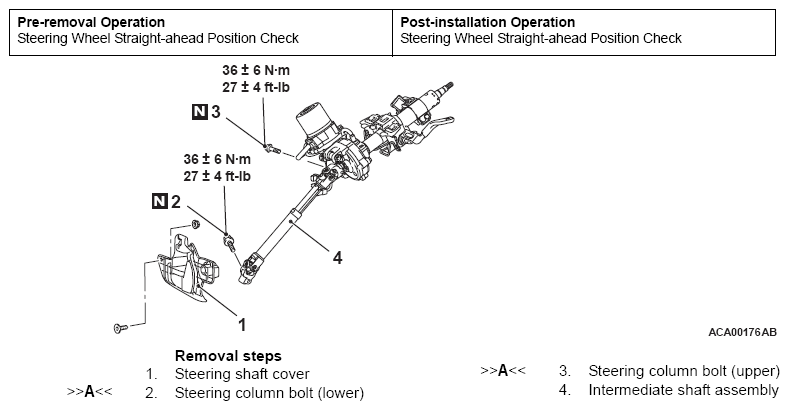

Fig 1: Intermediate Shaft Assembly Replacement Components With Torque Specifications
G07048555Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
