Disassembly And Assembly: Notes

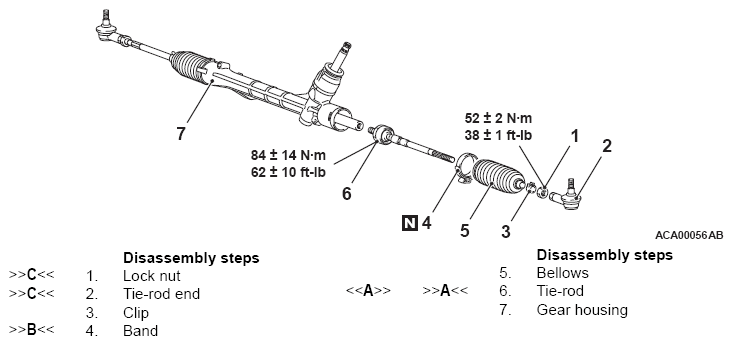

Fig 1: Power Steering Gear Box And Linkage Disassembly/Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB992209: Bellows Band Clipping Tool
• MB992249: Variable Spanner
