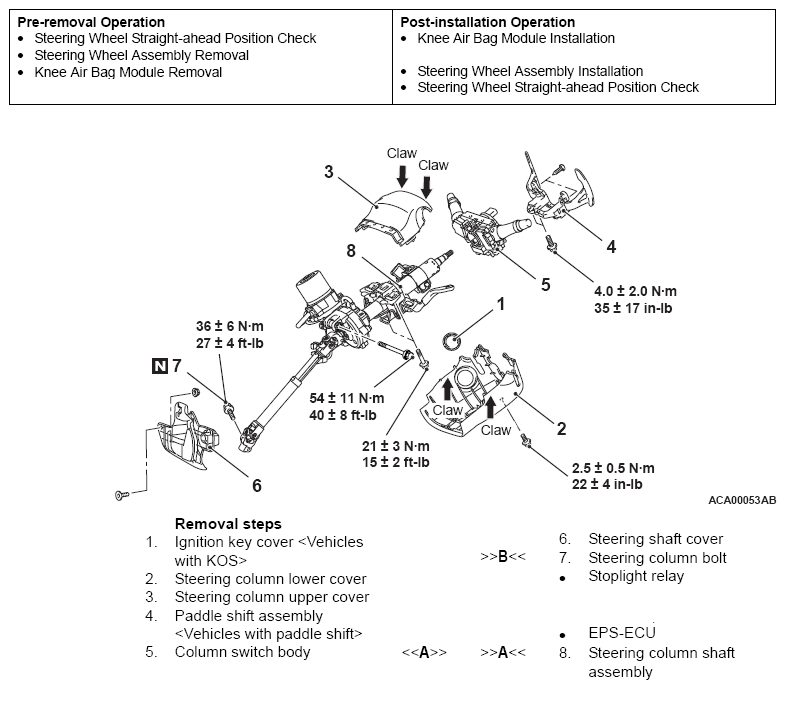

Removal And Installation: Notes
CAUTION:
- Before removing the steering wheel, driver's air bag module assembly and knee air bag module refer to SERVICE PRECAUTIONS , DRIVER'S AIR BAG MODULE AND CLOCK SPRING and KNEE AIR BAG MODULE .
- After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION .
- Do not reuse the part that has been dropped because its internal components may be defective even if it has no apparent damage.
- Always keep the steering column shaft assembly away from the matter that generates magnetic force.
- For the steering column shaft, parts cannot be disassembled.
- Be careful when removing and installing the steering column shaft assembly, because it is heavy.
