Disassembly And Assembly: Notes

NOTE: For additional service information, refer to TSB APPLICATION OF SILICONE GREASE ADDED - SERVICE MANUAL REVISION .

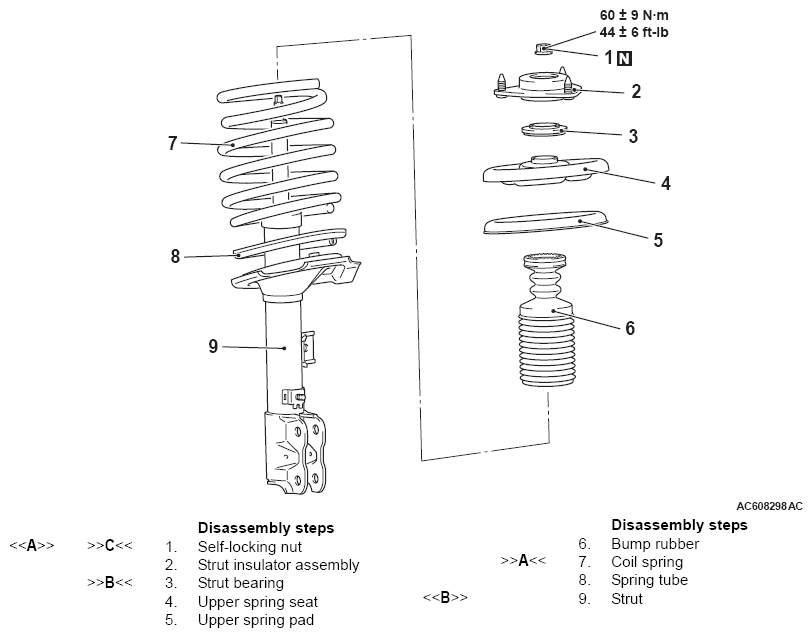

Fig 1: Strut Assembly Disassembly/Assembly Replacement Components With Torque Specifications
G07048247Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
