INSPECTION PROCEDURE 5: DIAGNOSIS MODE cannot be made an entry. < Vehicles with radio and CD player >: Notes

WARNING: This page is about a different car, the 2013 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

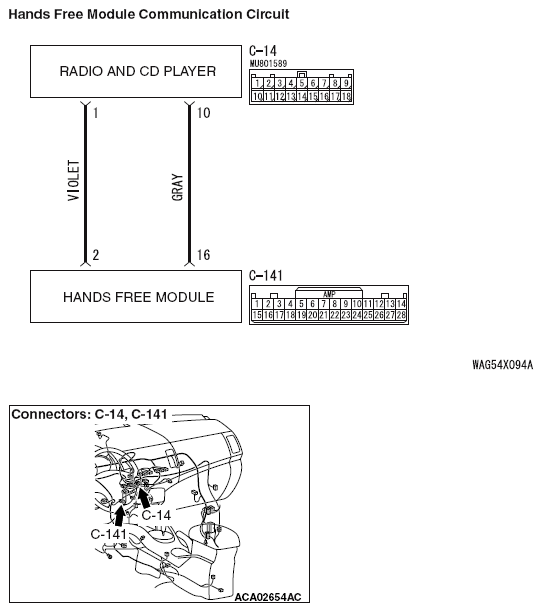

Fig 1: Hands Free Module Communication Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
