DTC P0826: Malfunction of Shift Switch Assembly: Notes

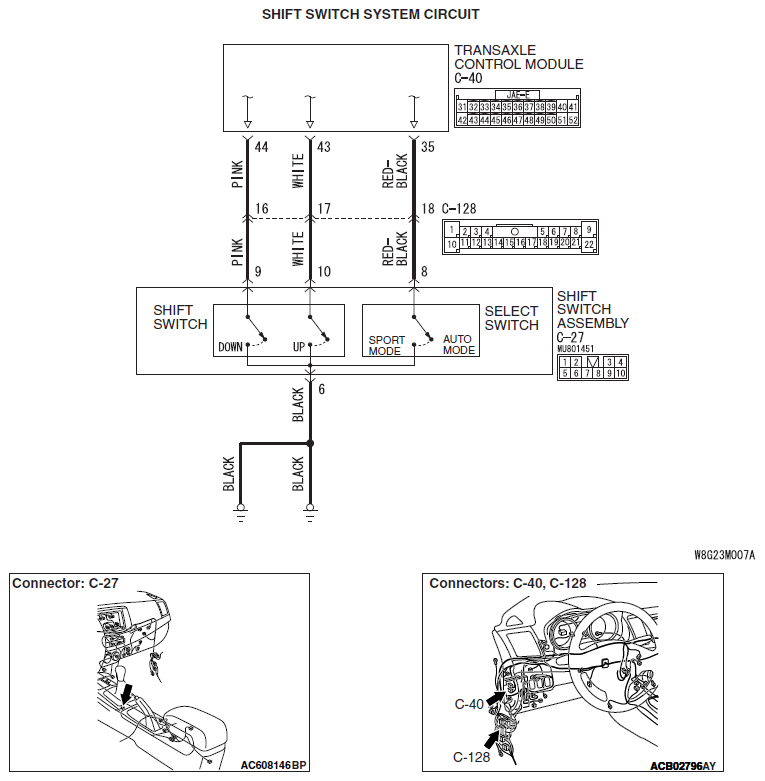

Fig 1: Shift Switch System - Circuit Diagram
G09626119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
