CVT Control Component Layout

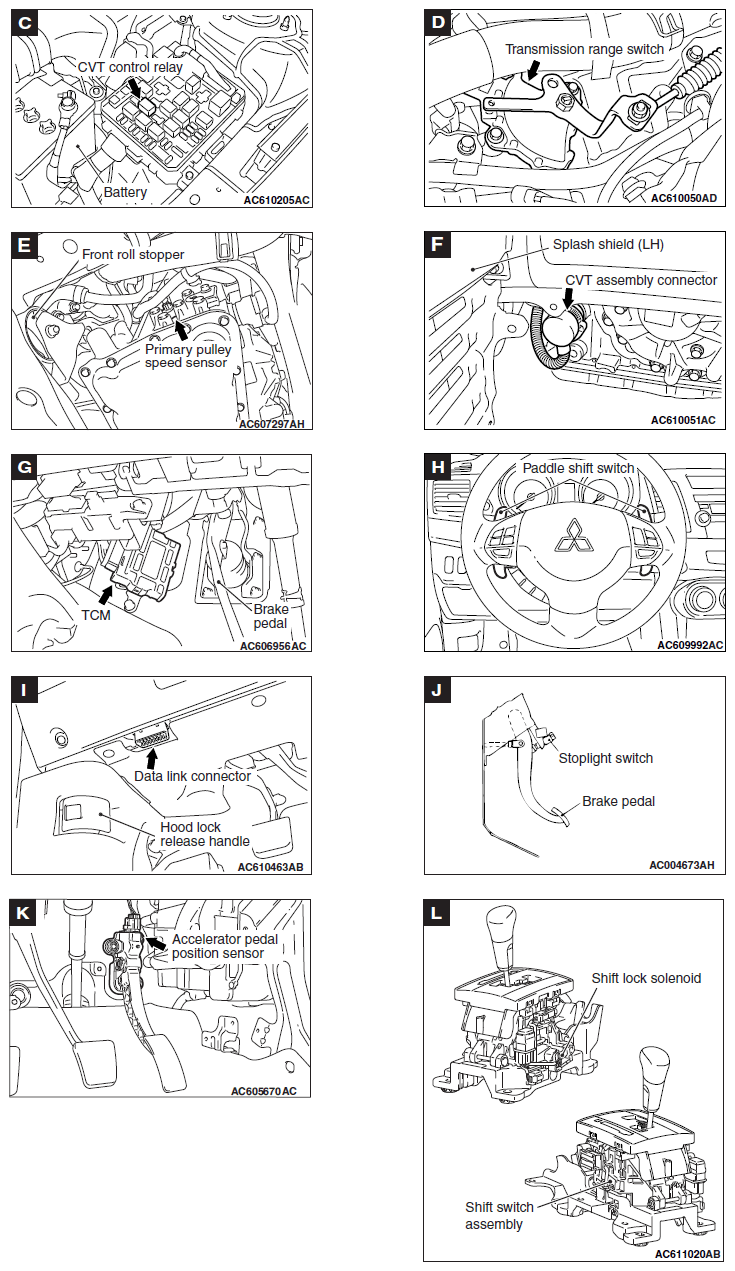

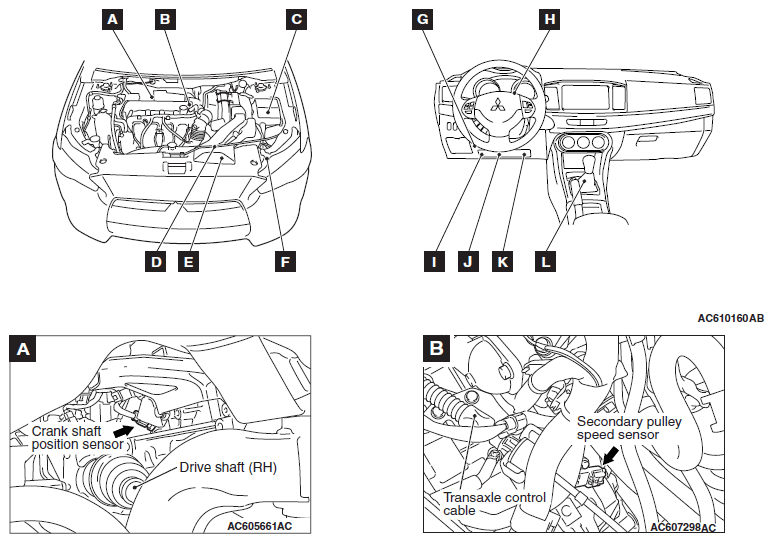

| Name | Symbol | Name | Symbol |
|---|---|---|---|
| Accelerator pedal position sensor | K | Primary pulley speed sensor | E |
| CVT assembly connector (Solenoid valve assembly, transmission fluid temperature sensor) | F | Secondary pulley speed sensor | B |
| CVT control relay | C | Shift lock solenoid | L |
| Crankshaft position sensor | A | Shift switch assembly < Vehicles with sport mode > | L |
| Data link connector | I | Stoplight switch | J |
| Paddle shift switch < Vehicles with sport mode > | H | TCM | G |
| Transmission range switch | D |
