DTC C2208: AWD-ECU internal error: Notes

WARNING: This page is about a different variant/trim than selected.

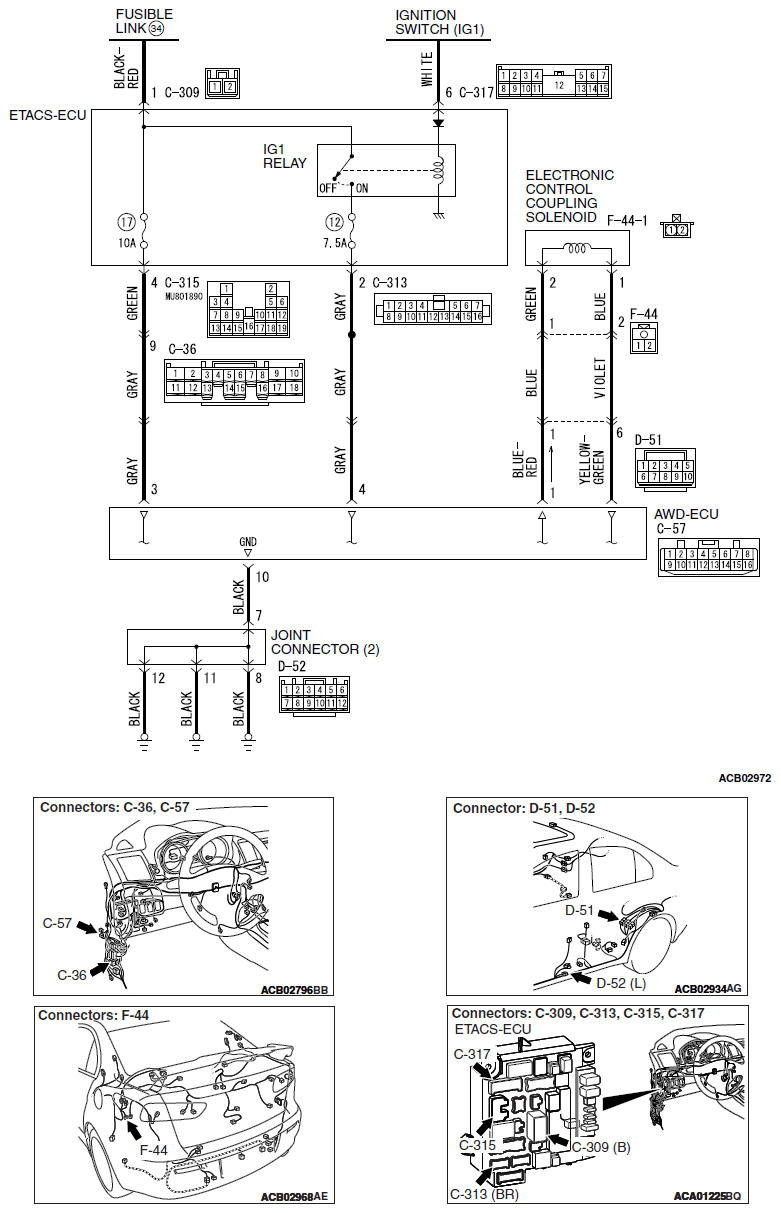

Fig 1: AWD-ECU Internal Error - Circuit Diagram (DTC C2208)
G09626779
CAUTION: If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, always diagnose the CAN bus lines.
