Inspection Procedure 2: The Switch Position of the Drive Mode Selector does not Match with the Indicator Display in the Combination Meter
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inspection Procedure 2: The Switch Position of the Drive Mode Selector does not Match with the Indicator Display in the Combination Meter: Notes
WARNING:
This page is about a different variant/trim than selected.

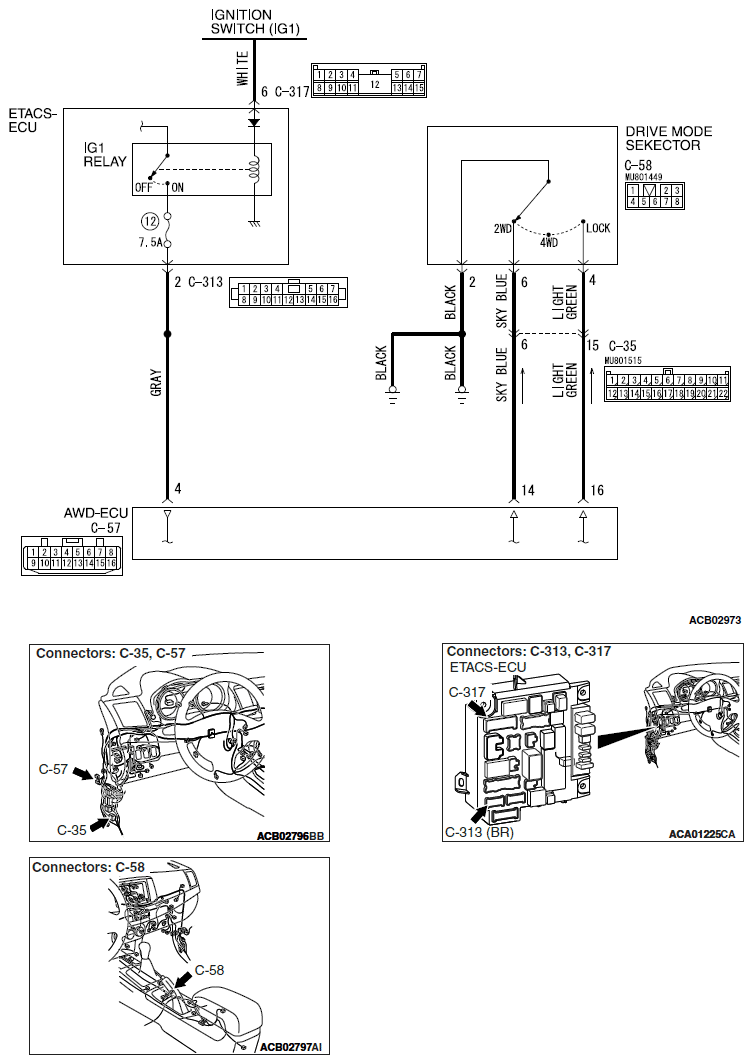

Fig 1: Drive Mode Selector - Circuit Diagram
