< Lancer SPORTBACK >

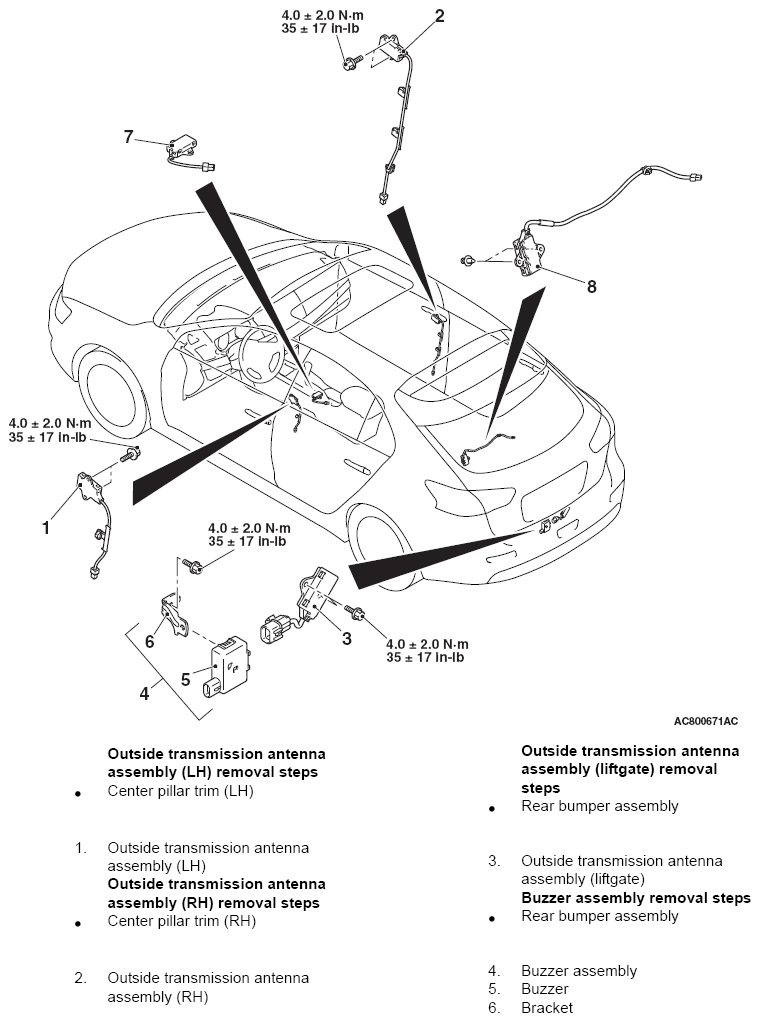

Fig 1: Removing/Installing Outside Transmission Antenna Assembly With Torque Specification (Lancer Sportback)
G09627900Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
