DTC U0231: Lighting control sensor LIN timeout < Vehicles with auto light function >: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

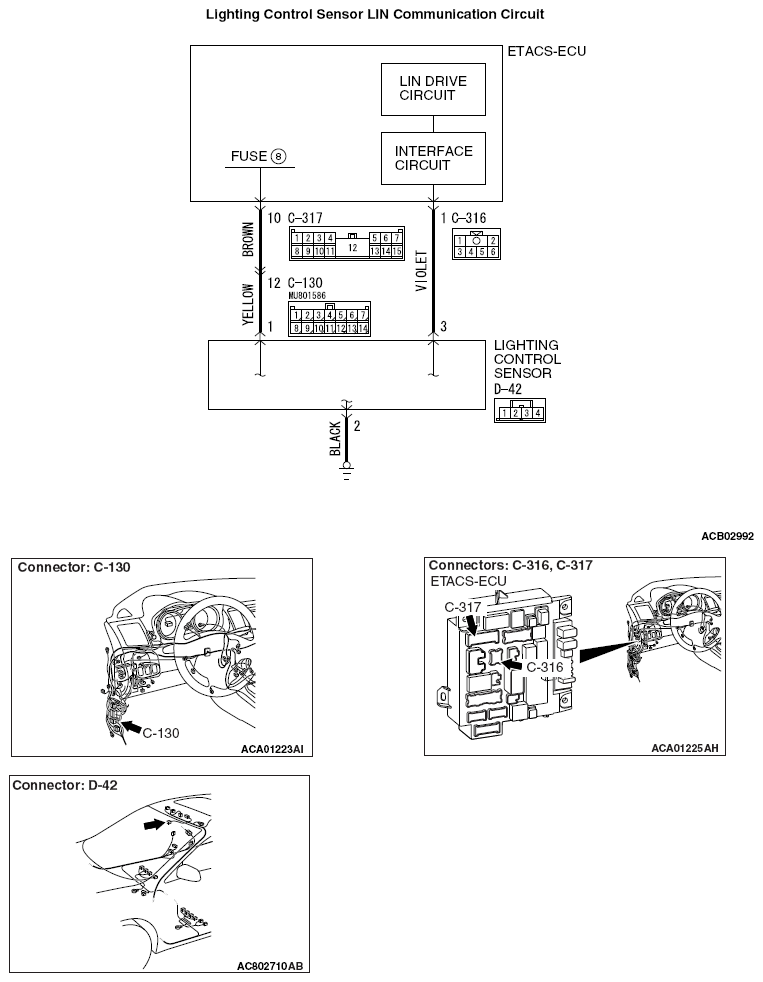

Fig 1: Lighting Control Sensor LIN Communication - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
