DTC U1109: Column SW LIN timeout: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

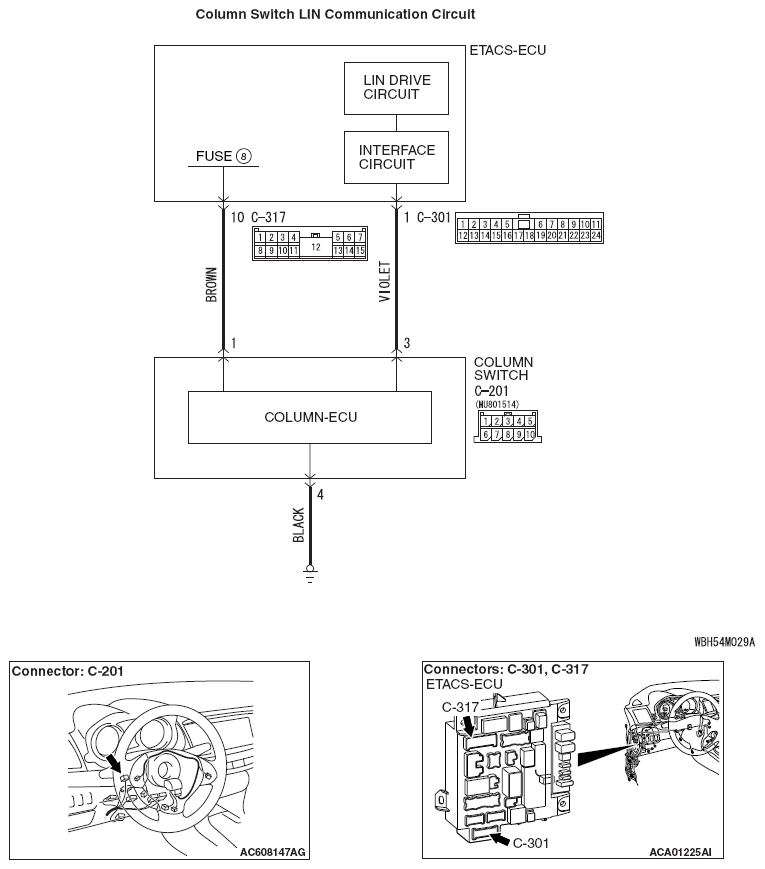

Fig 1: Column Switch LIN Communication - Circuit Diagram
G09630657Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
