DTC U1515: No-Bus activity error (LIN): Notes

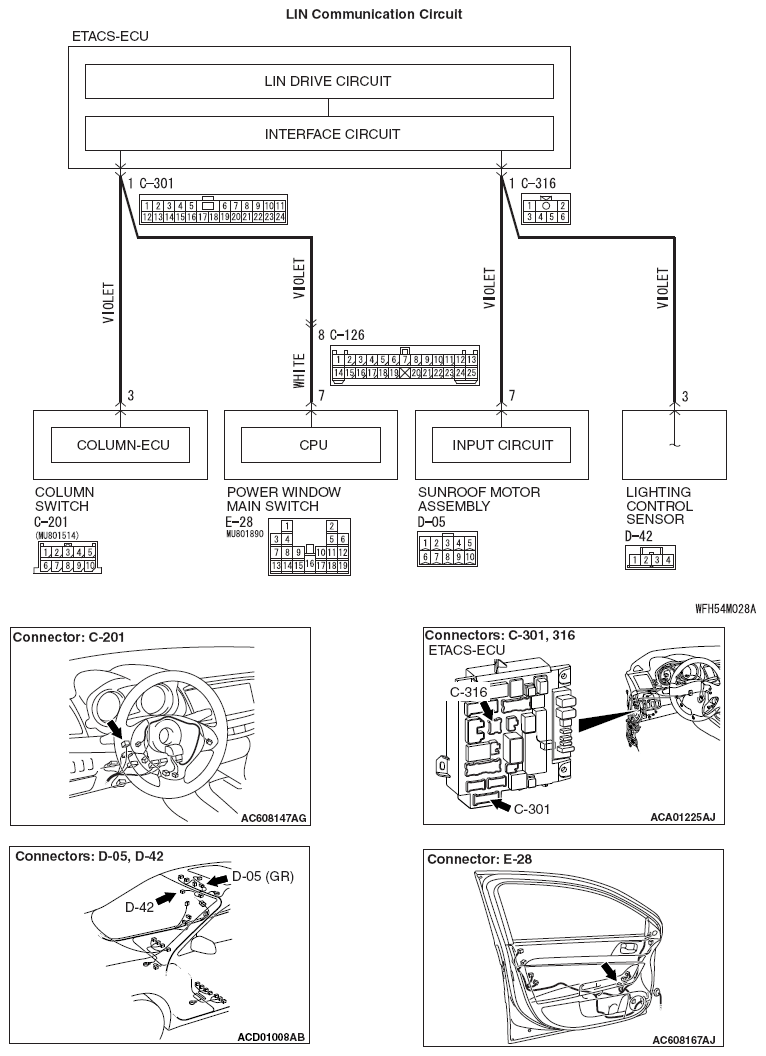

Fig 1: LIN Communication - Circuit Diagram
G09630666Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
