System configuration: Lancer

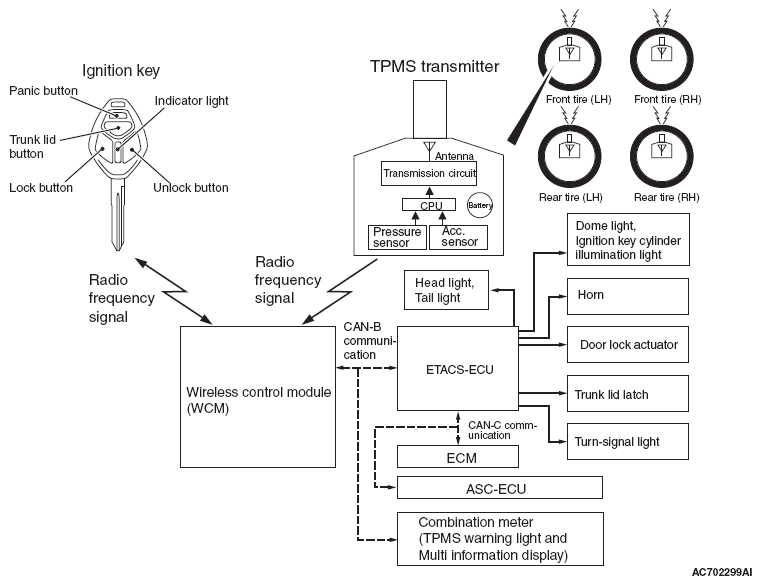

Fig 1: Wireless Control Module - System Diagram (Lancer)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
