Steering Wheel Voice-Control Switch Continuity Check: Notes

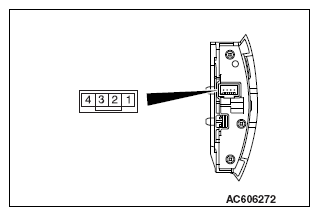

Use an ohmmeter to measure the resistance value between the terminal.
| Switch position | Tester connection | Measurement value |
|---|---|---|
| No push | 2 - 3 | Approximately 74 kΩ |

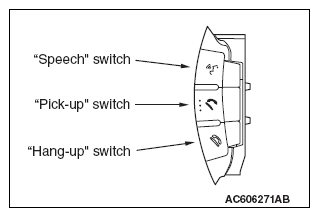

| "Speech" switch | Approximately 1.5 kΩ | |
| "Pick-up" switch | Approximately 3.3 kΩ | |
| "Hang-up" switch | Approximately 6.0 kΩ |
