Touch Switch Revision

Select "Touch Switch Revision" button on "Monitor Adjustment" screen.

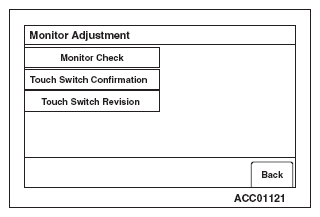

Fig 1: Display - Monitor Adjustment Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "Set" button according to the instructions on the screen.
When the confirmation button is selected after the adjustment, it will be switched back to "Monitor Adjustment" screen.

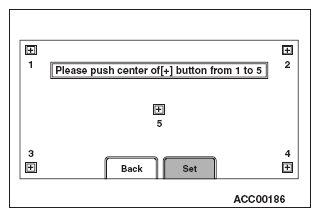

Fig 2: Display - Set Button Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
