Disassembly And Assembly < 16-Inch Front Disc Brake (RALLIART) >: Notes

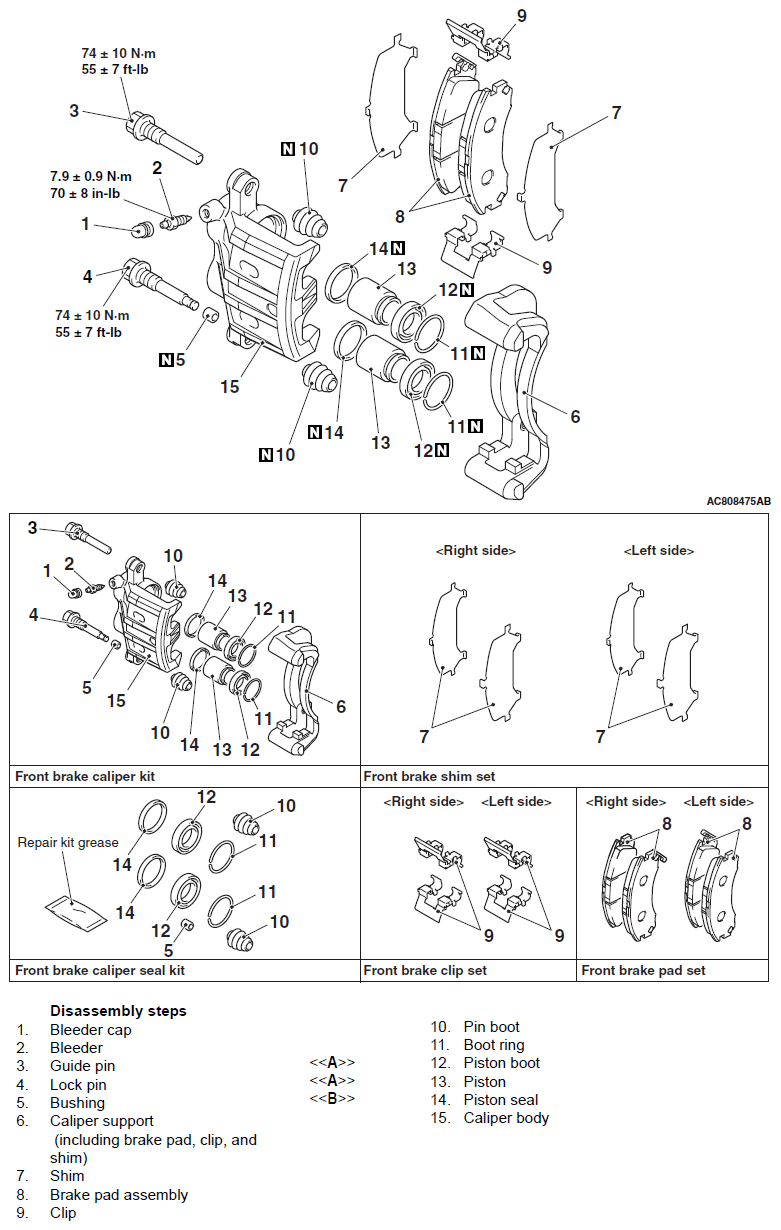

Fig 1: Disassembled And Assembled View Of 16-Inch Front Disc Brake With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.
