7. Optional Int Schedule Setting: Notes

CAUTION: If the current schedule is set to the "Optional INT" by executing "5. Periodic reminder schedule set," the "set value" cannot be input. Therefore, set it to the schedule other than the "Optional INT" once, and then execute "7. Optional INT schedule setting."

In addition to the existing schedule, the optional service reminder schedule can be set.

On the "Service Reminder" screen, select "7 Optional INT schedule setting."
NOTE: The screen indicates that the optional schedule (Nos.12 and 13 in the data list) has not been set.

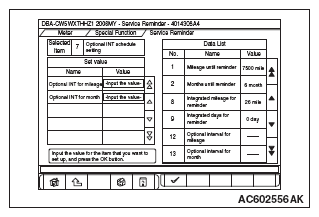

Fig 1: Display Optional Schedule (No. 12 And 13 In Data List) Has Not Been Set
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the optional schedule (distance or month) of the "Set value."
NOTE: Either input of distance or month can execute the setting.
Press the "OK" button.

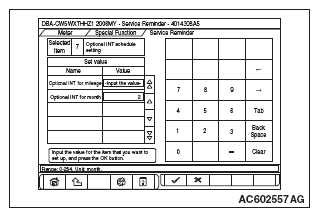

Fig 2: Setting Optional Schedule (Distance Or Month) Of Set Value
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The optional schedule is set. The set schedule becomes effective by executing "5 Periodic reminder schedule set" and setting the schedule to "Optional INT."
NOTE: The screen indicates that "2 month" has been added to the optional schedule (No.13 in the data list). (The distance of No.12 in the data list has not been set).

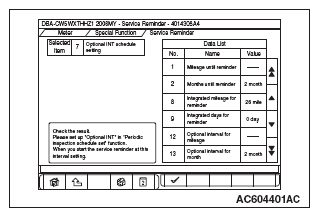

Fig 3: Display - "2 Month" Has Been Added To Optional Schedule (No. 13 In Data List)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
