DTC B1B0B: Passenger's (Front) Air Bag Module (1st squib) System (Short Circuit Between Squib Circuit Terminals); DTC B1B0F: Passenger's (Front) Air Bag Module (2nd squib) System (Short Circuit Between Squib Circuit Terminals): Diagnosis

Required Special Tools:

  1. STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
    CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
    1. Connect scan tool MB991958. Refer to "HOW TO CONNECT THE SCAN TOOL  ."
    2. Turn the ignition switch to the "ON" position.
    3. Diagnose the CAN bus line.
    4. Turn the ignition switch to the "LOCK" (OFF) position.

    Q: Is the CAN bus line found to be normal?

    • YES:  Go to Step 2.
    • NO:  Repair the CAN bus line (Refer to DIAGNOSIS ).

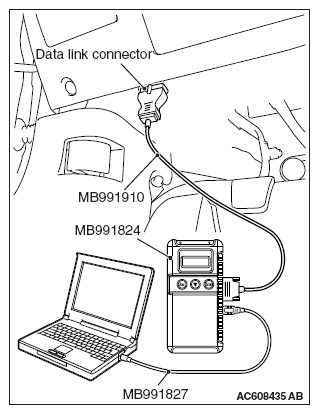

      Fig 1: Connecting Special Tool MB991910 To Data Link Connector
      G09629280Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. STEP 2. Recheck for diagnostic trouble code.

    Check again if the DTC is set.

    1. Erase the DTC.
    2. Turn the ignition switch to the "ON" position.
    3. Check if the DTC is set.
    4. Turn the ignition switch to the "LOCK" (OFF) position.

    Q: Is the DTC set?

  3. STEP 3. Check SRS-ECU connector C-122 and passenger's (front) air bag module connector C-16.
    1. Disconnect the negative battery terminal.
    2. While pressing the part A in the illustration of the C-122 SRS-ECU harness side connector, turn the lock lever toward the arrow direction to release the lock lever. Then, disconnect the connector and reconnect it.

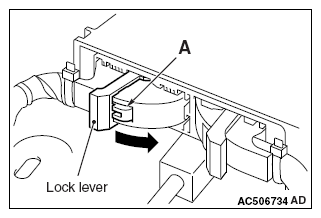

      Fig 2: Turning Lock Lever
      G09629281Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Disconnect C-16 passenger's (front) air bag module harness side connector while sliding toward the arrow direction, and then reconnect it.
    4. Connect the negative battery terminal.
    5. Erase the diagnostic trouble code memory, and check the diagnostic trouble code.

    Q: Is DTC B1B0B < 1st squib > or B1B0F < 2nd squib > set?

    • YES:  Go to Step 4.
    • NO:  The procedure is complete. It is assumed that DTC B1B0B < 1st squib > or B1B0F < 2nd squib > set as connector C-122 or C-16 was engaged improperly.
      Fig 3: Disconnecting C-16 Passenger'S (Front) Air Bag Module Harness Side Connector
      G09629282Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. STEP 4. Check the passenger's (front) air bag module.
    1. Disconnect the negative battery terminal.
    2. Disconnect C-16 passenger's (front) air bag module harness side connector while sliding toward the arrow direction.

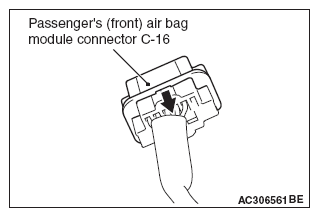

      Fig 4: Disconnecting C-16 Passenger'S (Front) Air Bag Module Harness Side Connector
      G09629283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Connect special tool MB991865 to special tool MB991866.
      CAUTION: Do not insert a probe into the terminal from its front side directly as the connector contact pressure may be weakened.
    4. Insert special tool MB991866 into the harness side connector C-16 (terminal No. 1 and 2 < 1st squib > or terminal No. 3 and 4 < 2nd squib >) by backprobing.
    5. Connect the negative battery terminal.
      CAUTION: Always DTC B1B0E is set when checking DTC B1B0B. This is because the second side terminal is isolated when checking it. DTC B1B0E is set but this is not a fault. In addition, always DTC B1B0A is set when checking DTC B1B0F because the first side terminal is isolated.
    6. Erase the diagnostic trouble code memory, and check the diagnostic trouble code.

    Q: Is the checked DTC set?

    • YES:  Go to Step 5.
    • NO:  Replace the passenger's (front) air bag module (Refer to PASSENGER'S (FRONT) AIR BAG MODULE  ). Then go to  Step 7.

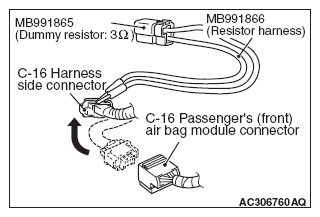

      Fig 5: Connecting Special Tool MB991865 To Special Tool MB991866
      G09629284Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. STEP 5. Check the passenger's (front) air bag module circuit at SRS-ECU connector C-122.
    1. Disconnect the negative battery terminal.
    2. While pushing the part "A" indicated in the illustration of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-122 SRS-ECU connector.
      Fig 6: Turning Lock Lever
      G09629285Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      WARNING: To prevent the air bag from deploying unintentionally, disconnect the passenger's (front) air bag module connector C-16 to short the squib circuit.
    3. Disconnect C-16 passenger's (front) air bag module harness side connector while sliding toward the arrow direction.

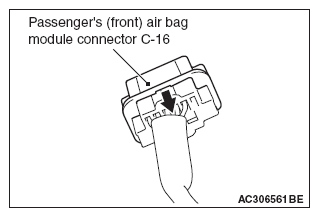

      Fig 7: Disconnecting C-16 Passenger'S (Front) Air Bag Module Harness Side Connector
      G09629286Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      CAUTION: Insert an insulator such as a cable tie to a depth of 4 mm (0.16 inch) or more, otherwise the short spring will not be released.
    4. Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch) thick] between terminals 7 and 8 < 1st squib > or 11 and 12 < 2nd squib >, and the short spring to release the short spring.

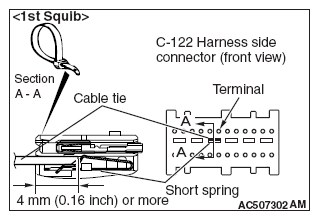

      Fig 8: Inserting Cable Tie Wide Between Terminals 7, 8 (1st Squib) And Short Spring
      G09629287Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

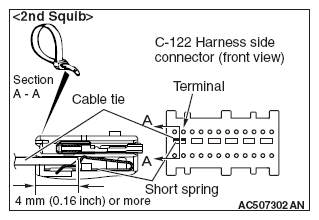

      Fig 9: Inserting Cable Tie Wide Between Terminals 11, 12 (2nd Squib) And Short Spring
      G09629288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    5. Check for continuity between C-122 harness side connector terminals 7 and 8 < 1st squib > or 11 and 12 < 2nd squib >. It should be open circuit.

    Q: Is it open circuit?

    • YES:  Erase the diagnostic trouble code memory, and check the diagnostic trouble code. If DTC B1B0B < 1st squib > or B1B0F < 2nd squib > set, replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU)  ). Then go to  Step 7.
    • NO:  Go to Step 6.

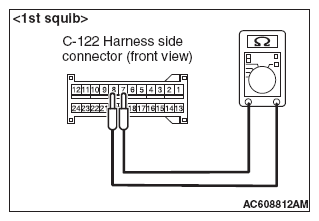

      Fig 10: Checking Continuity Between C-122 Harness Side Connector Terminals 7 And 8 (1st Squib)
      G09629289Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

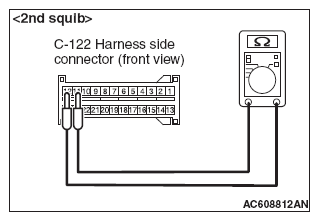

      Fig 11: Checking Continuity Between C-122 Harness Side Connector Terminals 11 And 12 (2nd Squib)
      G09629290Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. STEP 6. Check the harness for short circuit between the harness wire and wire.
    • SRS-ECU connector C-122 (terminal No. 7 and 8) and passenger's (front) air bag module connector C-16 (terminal No. 2 and 1) < 1st squib >.
    • SRS-ECU connector C-122 (terminal No. 11 and 12) and passenger's (front) air bag module connector C-16 (terminal No. 4 and 3) < 2nd squib >.

    Q: Is the check result normal?

    • YES:  Go to Step 7.
    • NO:  Repair the harness wires between SRS-ECU connector C-122 and passenger's (front) air bag module connector C-16. Then go to Step 7.
  7. STEP 7. Check for diagnostic trouble code.

    Check again if the DTC is set.

    1. Erase the DTC.
    2. Turn the ignition switch to the "ON" position.
    3. Check if the DTC is set.
    4. Turn the ignition switch to the "LOCK" (OFF) position.

    Q: Is DTC B1B0B < 1st squib > or B1B0F < 2nd squib > set?

    • YES:  Return to  Step 1.
    • NO:  The procedure is complete.
