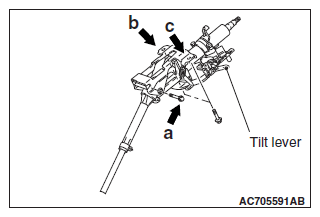

>> A << Steering Column Shaft Assembly Installation
- Ensure that the tilt lever is in the lock position.
- Temporarily tighten the mounting bolts in the order of a, b, and c, and then tighten them in the order of c, b, and a to the specified torque.
Tightening torque a: 28 ± 7 N.m (21 ± 5 ft-lb)
Tightening torque b, c: 12 ± 3 N.m (106 ± 27 in-lb)
