Disassembly And Assembly: Notes

NOTE: For additional service information, refer to TSB APPLICATION OF SILICONE GREASE ADDED - SERVICE MANUAL REVISION .

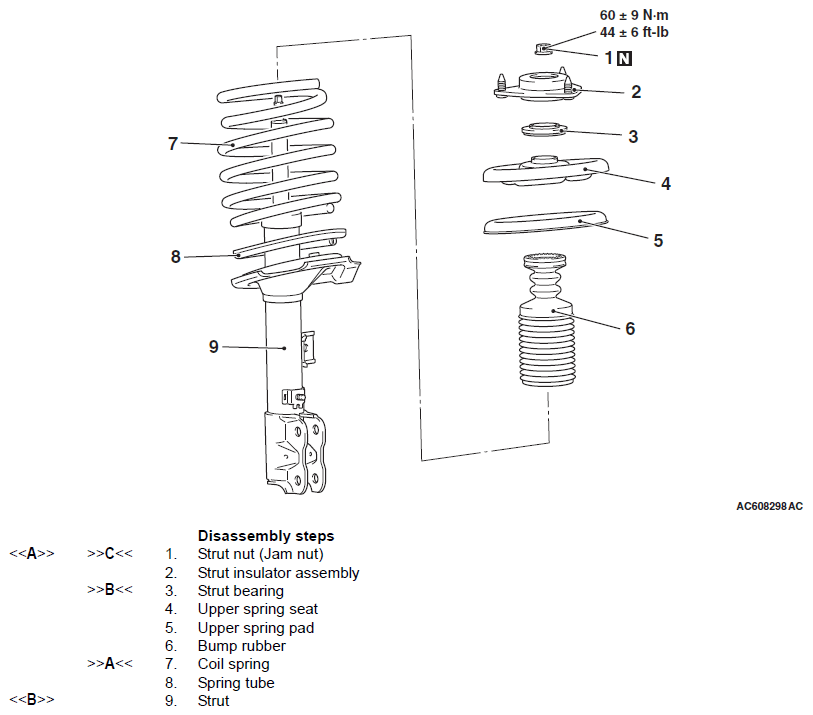

Fig 1: Disassembled And Assembled View Of Suspension With Torque Specifications
G09626875Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
