>> A << Gearshift Cable And Select Cable Assembly/Gearshift Cable Connection (Transaxle Side)/Select Cable Connection (Transaxle Side)/Gearshift Link Clip Installation

CAUTION: Insert thoroughly the gearshift link clip, gearshift cable and select cable until they click in place.

After installing the new gearshift link clip to the cable bracket of the transaxle, install the gearshift cable and select cable to the cable bracket.
NOTE: The clip is reversible.

CAUTION: Check that the clip is securely installed.

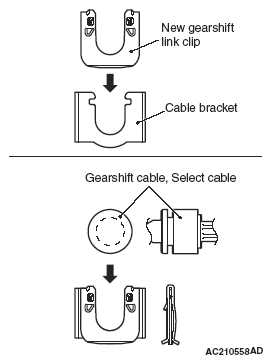

Fig 1: Installing Gearshift Link Clip
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Securely fit the tips of the gearshift cable and the select cable.
Move the shift lever and gearshift lever to all positions and check that the operation is smooth.

Fig 2: Identifying Gearshift And Select Cable
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
