Disassembly And Assembly: Notes

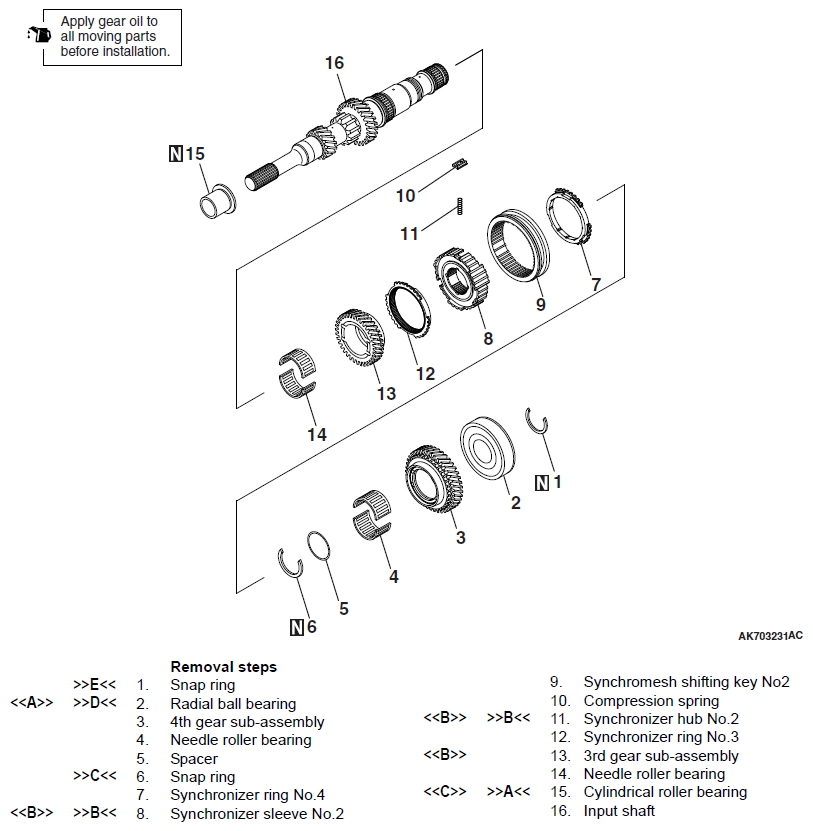

Fig 1: Disassembling/Assembling Input Shaft Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998917: Bearing remover
• MB990560: Rear axle shaft bearing remover
• MD998812: Installer cap
• MD998813: Installer-100
• MD998818: Installer adapter
• MD998820: Installer adapter
