>> B << Slotted Spring Pin Installation

Drive in the slotted spring pin to the illustrated dimension.

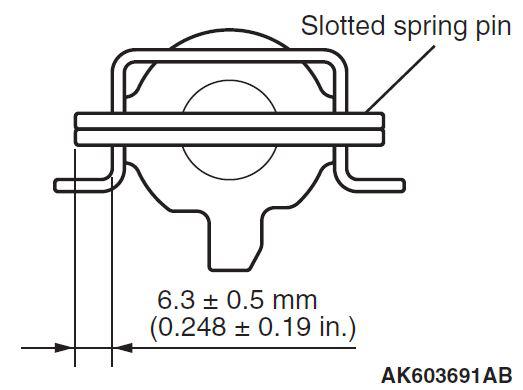

Fig 1: Identifying Slotted Spring Pin Dimension
G05375696Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
