>> D << Transaxle Case Assembly Installation

  1. Completely degrease the FIPG-applied surface so that water and oil including the old sealant cannot adhere to the surface coated with the sealant.

    Never touch the degreased surface by hand.

  2. Apply a 1.2 mm (0.05 inch) diameter bead of sealant as illustrated onto the transaxle case assembly.

    Specified sealant: Mitsubishi Motors Genuine Part No. MD974421 or equivalent

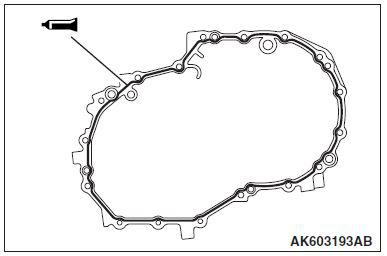

    Fig 1: Identifying Transaxle Case Assembly Gasket Sealant Applying Area
    G05375648Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
