>> G << Synchronizer Ring Assembly/Synchromesh Shifting Key Spring No. 3 (A)/Synchromesh Shifting Key Spring No. 3 (B) And Synchronizer Hub No. 3 Installation

Install the synchromesh shifting key springs No. 3 onto the synchronizer ring assembly holding the claws and rotation stops of the key springs in the illustrated positions.

Fig 1: Identifying Synchronizer Ring Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Make sure that the rotation stops of the synchromesh shifting key springs No. 3 fit into the mating holes in the synchronizer ring assembly.

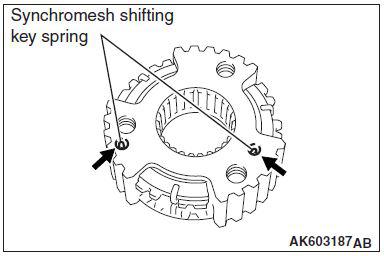

Fig 2: Locating Synchromesh Shifting Key Springs Mating Hole
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Compress the key springs into place inside the hub as shown in illustration.

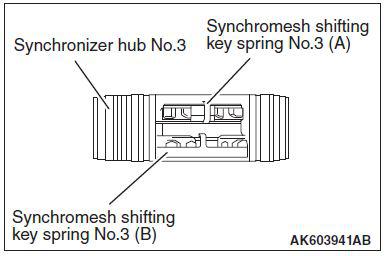

Fig 3: Identifying Shifting Key Springs And Hub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install special tool MB992220 until it hits the end face of the input shaft.

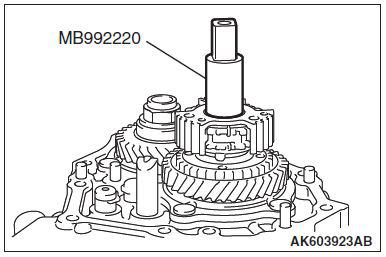

Fig 4: Installing Special Tool MB992220 To Input Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set special tool MB992216 on top of the synchronizer hub No. 3.

Fig 5: Installing Special Tool MB992216 On Top Of Synchronizer Hub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the center bolt that is a part of the set of special tool MB992216 as shown in illustration.

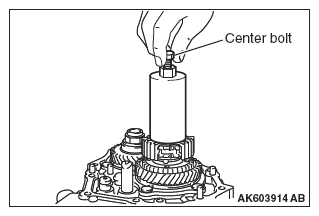

Fig 6: Installing Center Bolt To Set Of Special Tool MB992216
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Press-fit the synchronizer hub No. 3 as shown in illustration.

Fig 7: Pressing Synchronizer Hub No. 3
