Communications & Connection Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

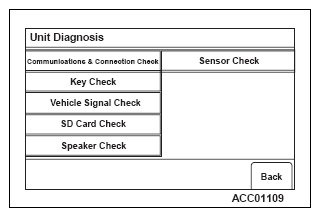

Select "Communications & Connection Check" button on "Unit Diagnosis" screen.

Fig 1: Display Unit Diagnosis
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

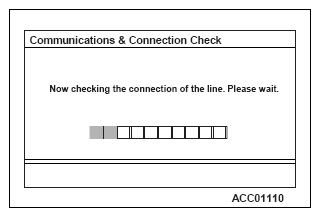

A network and connect line check will be initiated. The "Communications & Connection Check" screen will display how the check is in progress.

Fig 2: Display Communication And Connection Check Button
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the network and connect line check is finished, the screen will change to "Network/Connect Line Result" to show the check results.
NOTE: If there is "NG" or "N/A" as the check results, select "NG" on the "Network/Connect Line Result" screen. Then "NG code Indication" screen will show the NG code.

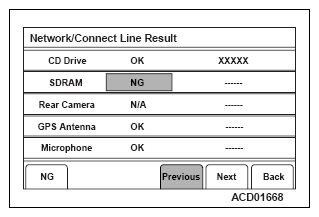

Fig 3: Display Network/Connect Line Result
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If "Back" is selected on "Network/Connect Line Result", the screen will return to "Unit Diagnosis" screen.

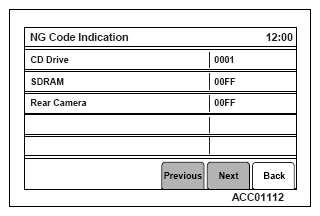

Fig 4: Display NG Code Information
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
