Speaker Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Select "Speaker Check" button on "Unit Diagnosis" screen.

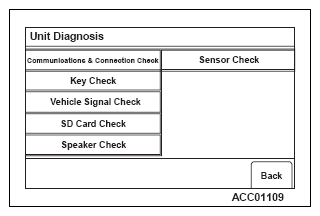

Fig 1: Display Unit Diagnosis Screen (Speaker Check Button)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select a speaker to be checked, and play test tone through the speaker.
NOTE:
- By operating the volume key, the volume can be changed.
- During the test, only the selected speaker sounds. If "Back" is selected during the test, the test tone will disappear.

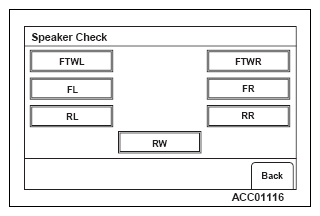

Fig 2: Display Speaker Check Button Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
