Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When the multivision display is replaced, always turn the ignition switch to the "ON" position once and then carry out the operation check.

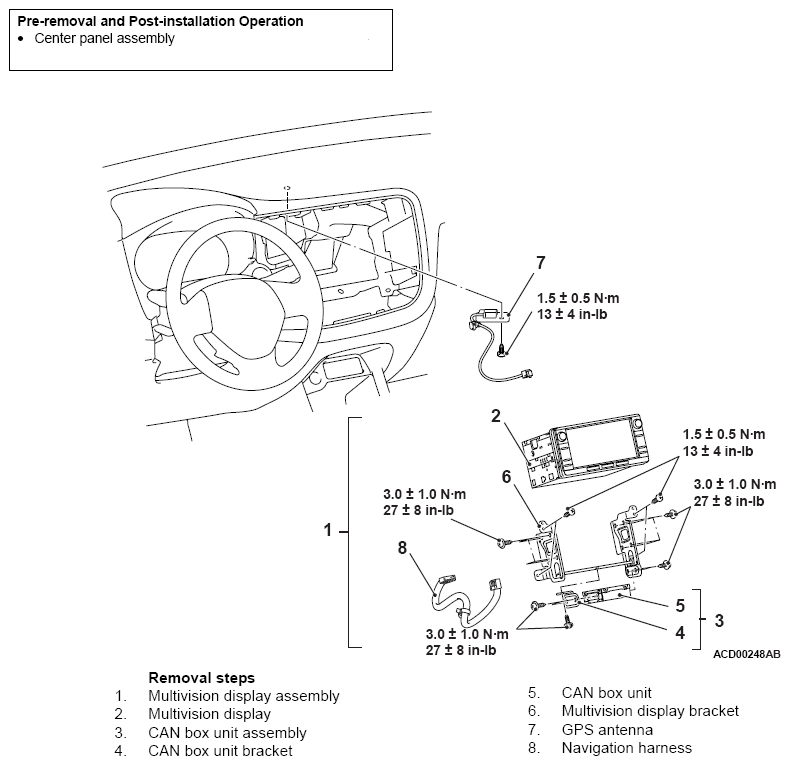

Fig 1: Exploded View Of MMCS With Torque Specification
G09667232Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
