< TC-SST >

  1. Remove the floor console box cup holder and the floor console panel assembly (Refer to FLOOR CONSOLE ASSEMBLY ).
  2. Turn the ignition switch to the position other than the LOCK (OFF) position.
  3. Insert a screwdriver or a similar tool from the section "A" shown in the figure. While pressing the shift lock forced release switch, move the shift lever.
    Fig 1: Locating Screwdriver Insertion Section
    G06468281Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

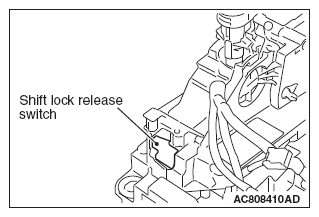

    Fig 2: Identifying Shift Lock Release Switch
    G09618755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
