DIAGNOSTIC ITEM 9: Diagnose when the scan tool cannot receive the data sent by ASC-ECU: Notes

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

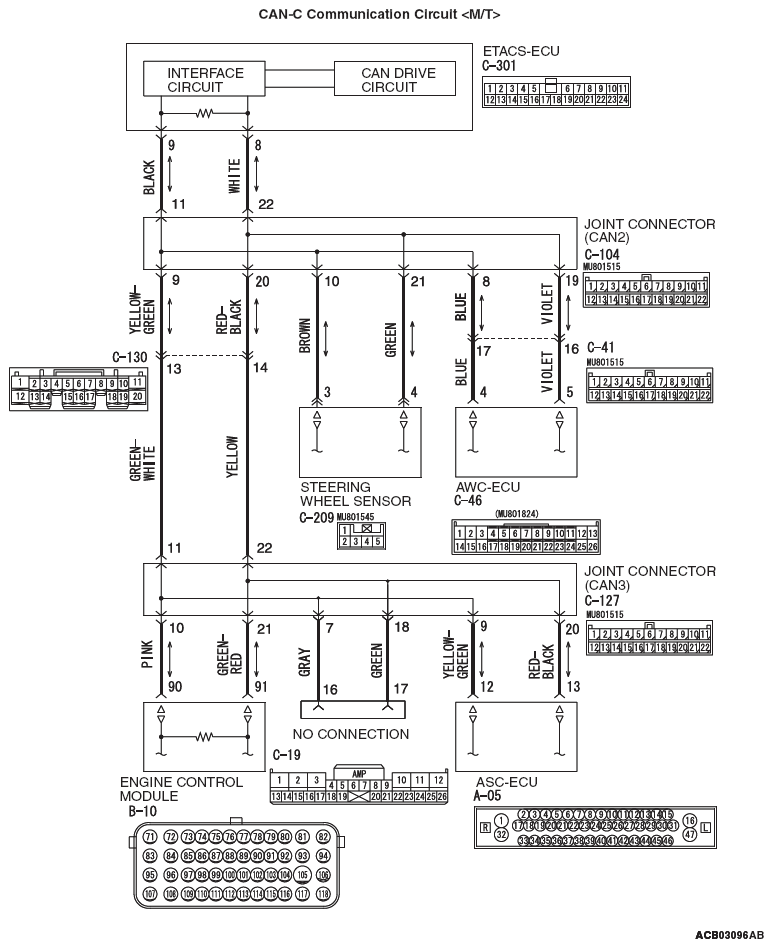

Fig 1: CAN-C Communication - Circuit Diagram (M/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

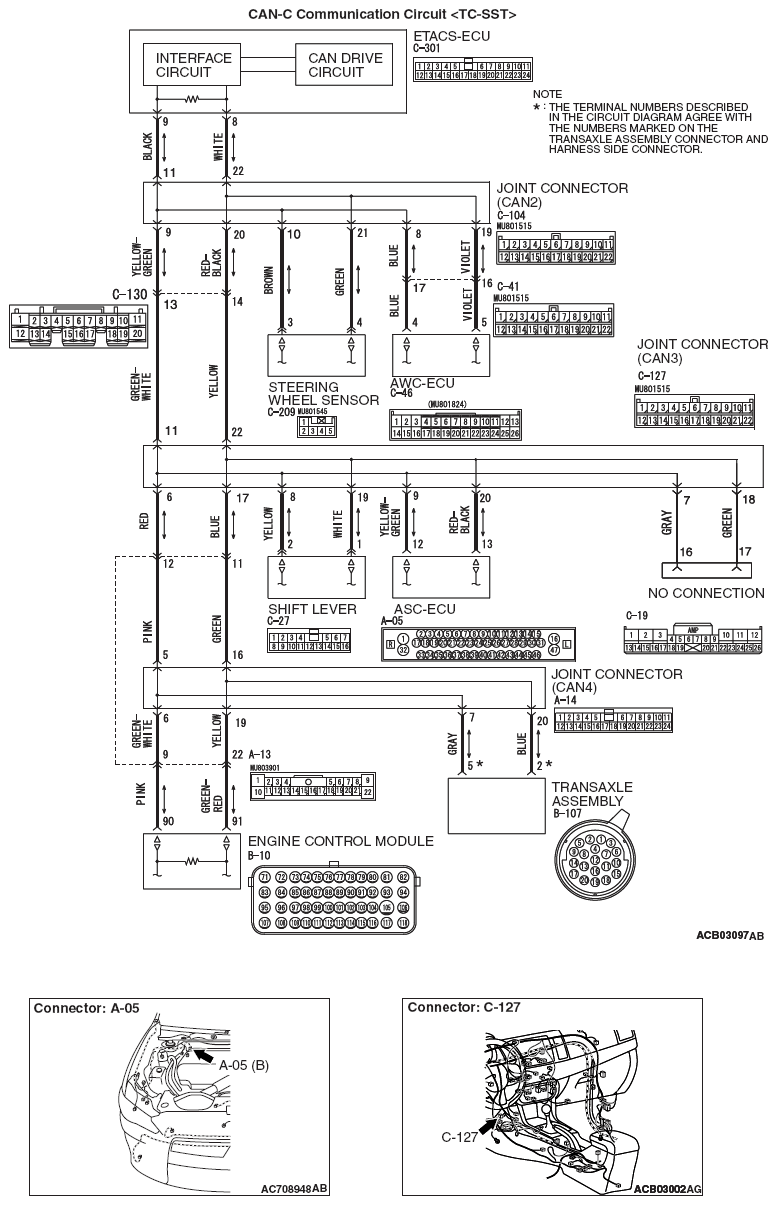

Fig 2: CAN-C Communication - Circuit Diagram (TC-SST)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
