DTC 22: Stoplight Switch System: Notes

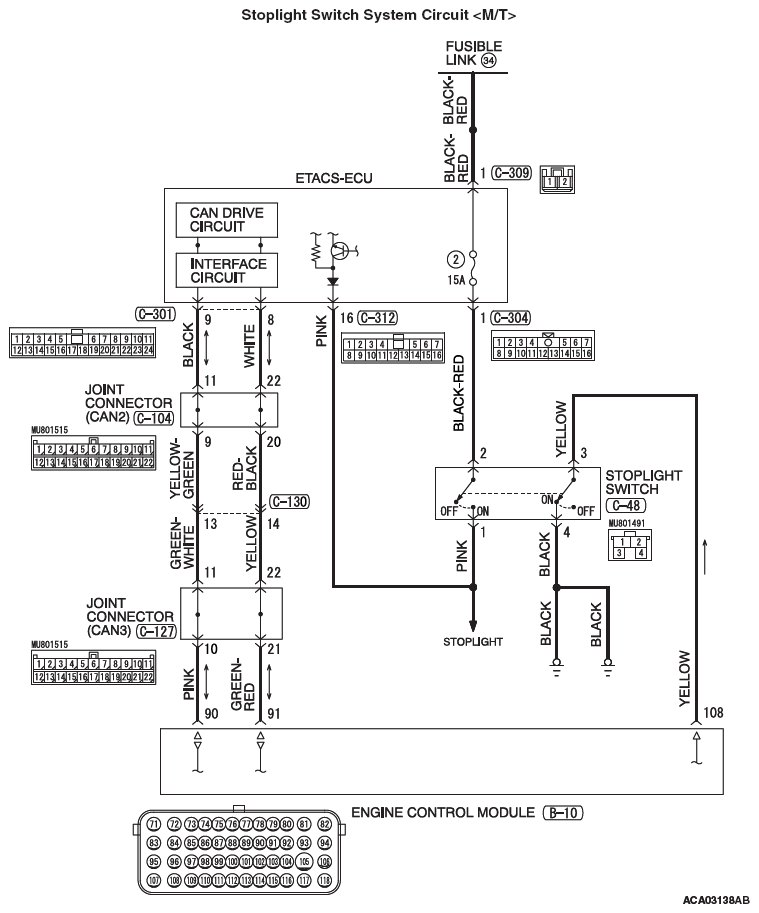

Fig 1: Stoplight Switch System Circuit Diagram (M/T)
G09641066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

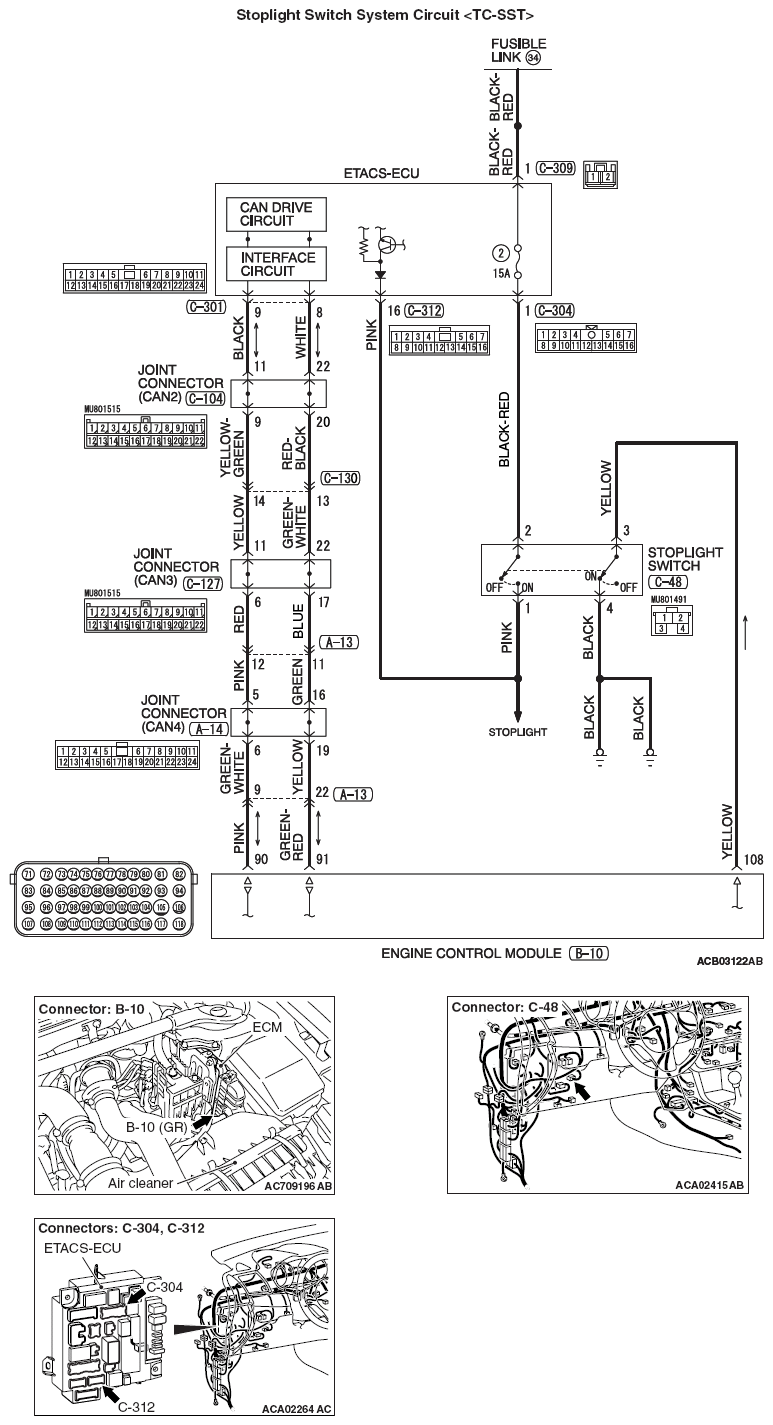

Fig 2: Stoplight Switch System Circuit Diagram (TC-SST)
G09641067Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
