Output Log File (Navi)

  1. Select "Output Log File (Navi)" button on "Log Function" screen.
    Fig 1: Scantool Display - Output Log File Screen (Navi)
    G09652802Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Press "Output to User SD Card" button on "System Log Output" screen in order to write a file.
    NOTE: If no SD card is inserted in the USER slot, "Output to User SD Card" button will not be active.
  3. After the file writing is complete, restart the navigation system.

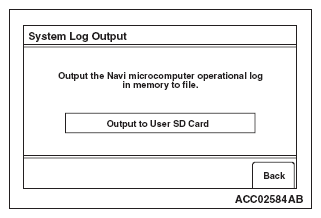

    Fig 2: Scantool Display - System Log Output
    G09652803Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
