SD Card Check

Select "SD Card Check" on "Unit Diagnosis" screen.

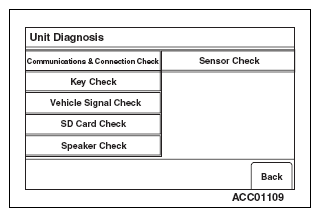

Fig 1: Scantool Display - Unit Diagnosis
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Start" button of "Map Slot Check Results" is pressed on "SD Card Check" screen, the SD card which is inserted in the map slot will be checked.
NOTE: When "Start" button is pressed on "USER slot Check Results", the SD card which is inserted in the USER slot will be checked.

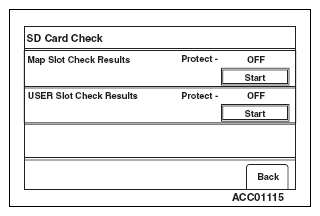

Fig 2: Scantool Display - Map Slot Check Results
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check result will be displayed.
- If the check result is OK.

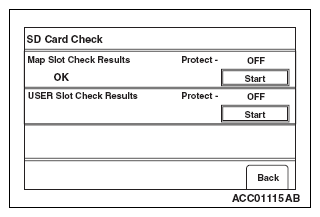

  Fig 3: Scantool Display - SD Card Check
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

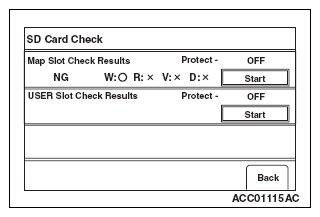

- If the check result is not OK.
  W: Writing check of a dummy file

  R: Reading check of a dummy file

  V: Reference check of a dummy file

  D: Deletion of a dummy file

  Fig 4: Scantool Display - Check Result Not OK
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

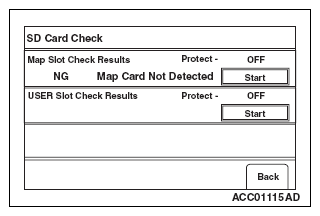

- If no SD card is detected:

  Fig 5: Scantool Display - SD Card Detected
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
