Touch Switch Revision

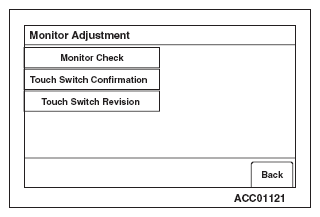

Select "Touch Switch Revision" button on "Monitor Adjustment" screen.

Fig 1: Scantool Display - Touch Switch Confirmation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

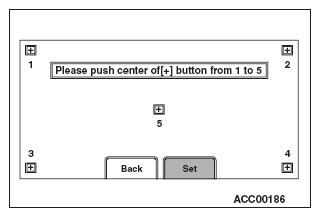

Select "Set" button according to the instructions on the screen.
When the confirmation button is selected after the adjustment, it will be switched back to "Monitor Adjustment" screen.

Fig 2: Scantool Display - Set Button
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
