Lighting Control Sensor Removal And Installation: Notes

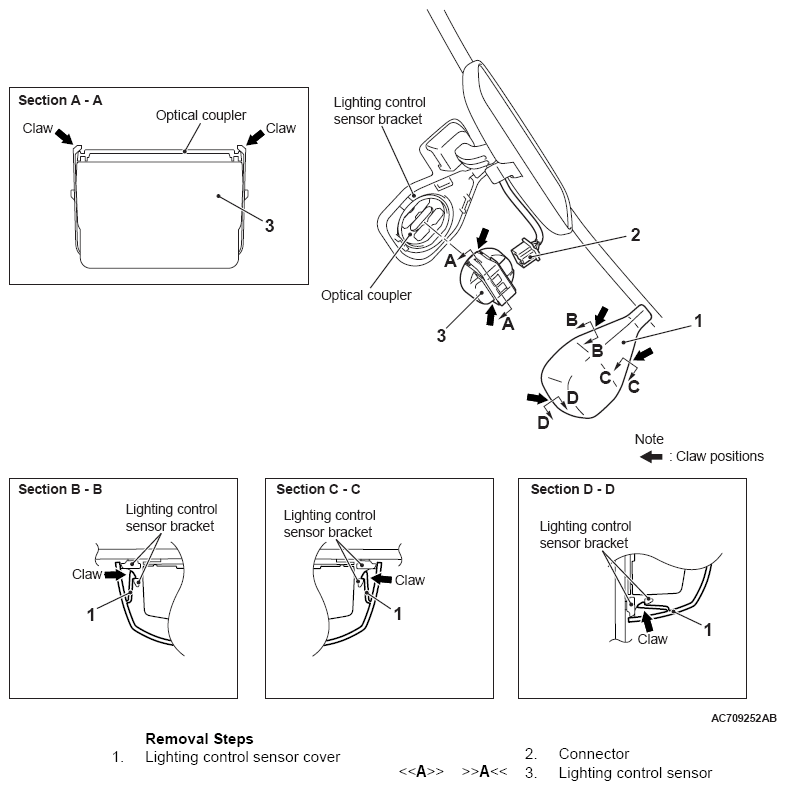

Fig 1: Removing/Installing Lighting Control Sensor
G09652565Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
