>> A << Microphone Unit Installation

Install the microphone unit so that the arrow face toward the driver's seat.

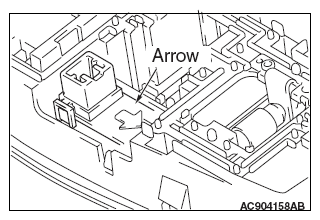

Fig 1: Microphone Unit Installation Position
G09652921Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
