Present Position Revision

Select "Present Position Revision" button on "Service" screen.

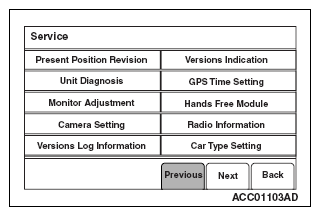

Fig 1: Scantool Display - Map Service
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Adjust the position, and then press "Set" button. Then adjust the direction, and then press "Set" button.

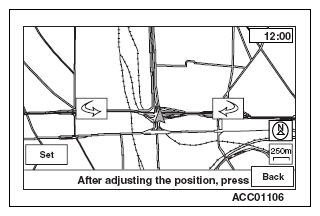

Fig 2: Scantool Display - Set Button
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

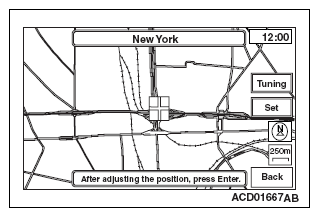

Fig 3: Scantool Display - Set Button Screen (Press Enter)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: If a road type must be selected, select "Highway" or "Regular Road".

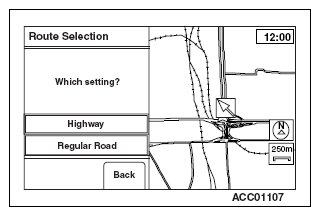

Fig 4: Scantool Display - Route Selection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
A current location will be displayed on "Current location revised." screen.

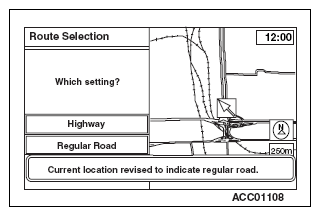

Fig 5: Scantool Display - Current Location Revised
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
