Sensor Check

Select "Sensor Check" button on "Unit Diagnosis" screen.

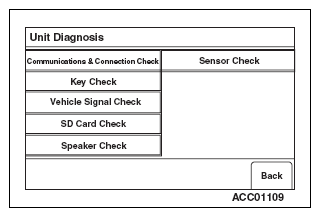

Fig 1: Scantool Display - Unit Diagnosis
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Press "Start" button on "Sensor Check" screen, and then follow instructions on the screen to operate the vehicle.

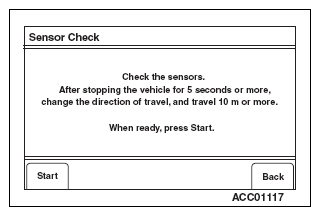

Fig 2: Scantool Display - Sensor Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

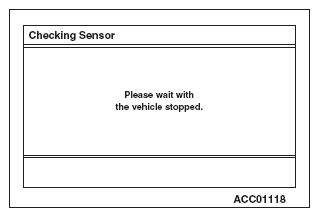

Fig 3: Scantool Display - Checking Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

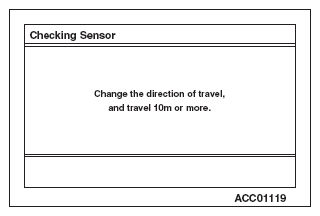

Fig 4: Scantool Display - Checking Sensor (Travel 10m Or More)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check result will be displayed. If any of the check results is not OK, a NG code will be displayed.

Sensor classification	NG Code No.	Error items
Gyro sensor	1	Offset error while the vehicle is stationary (lower limit error)
	2	Offset error while the vehicle is stationary (upper limit error)
	5	Output error during driving
Speed sensor	6	Output error while the vehicle is stationary

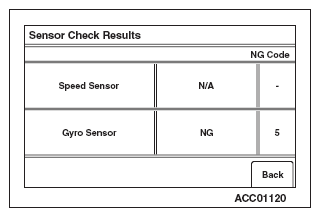

Fig 5: Scantool Display - Sensor Check Results

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
