Touch Switch Confirmation

Select "Touch Switch Confirmation" button on "Monitor Adjustment" screen.

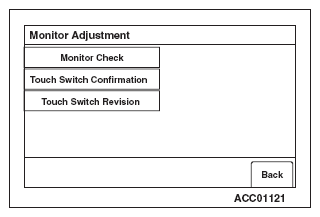

Fig 1: Scantool Display - Touch Switch Confirmation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If you touch the screen, the color of the dotted coordinate at the touched area will be changed.

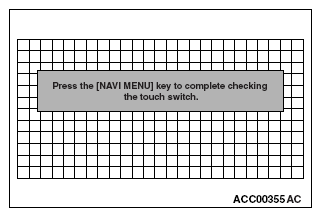

Fig 2: Scantool Display - Touched Area Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

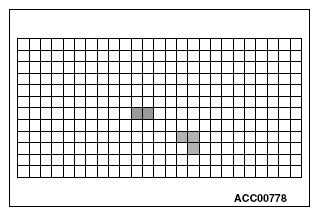

Fig 3: Scantool Display - Color Of Dotted Coordinate Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
