Inspection Procedure 3: The Screen is not Normal in the Navigation Mode: Notes

CAUTION: Before replacing the multivision display, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more.)

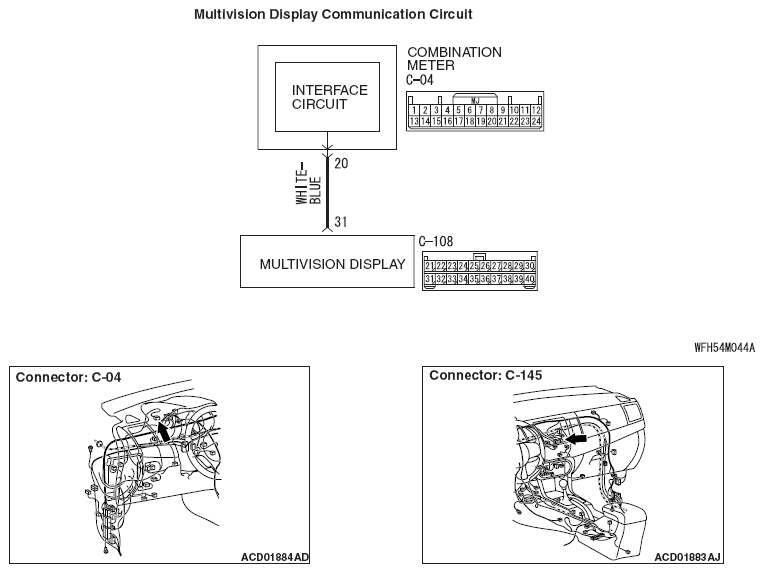

Fig 1: Multivision Display Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
