Inspection Procedure 2: Steering Wheel Audio Remote Control Switch does not Function. < Vehicles with MMCS >: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

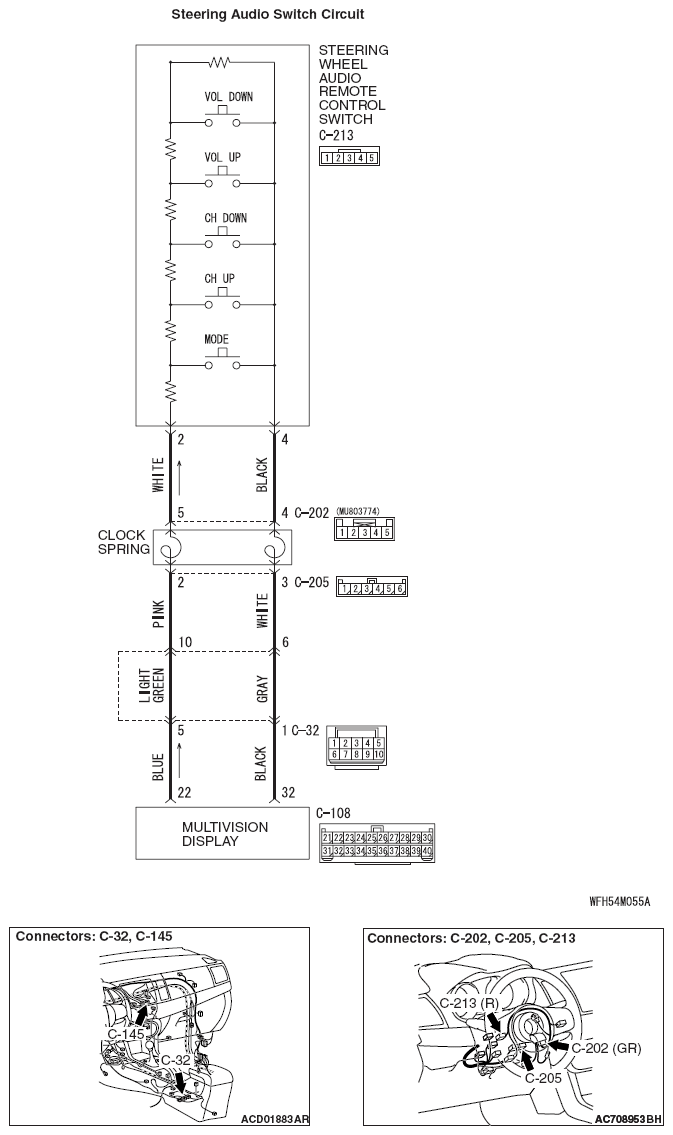

Fig 1: Steering Audio Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
