>> A << Battery Installation

CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

Install a new battery with the positive side facing toward the lower cover.

Replacement battery: Coin-type lithium battery CR2032

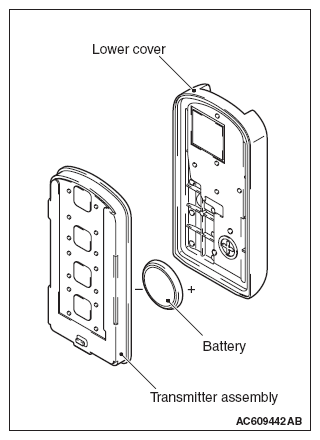

Fig 1: Lower Cover, Battery And Transmitter Assembly
G09651455Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
